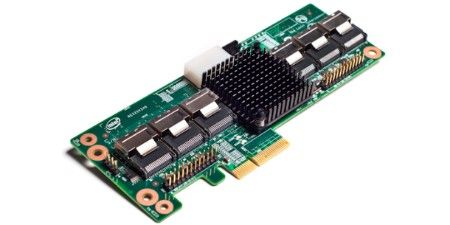

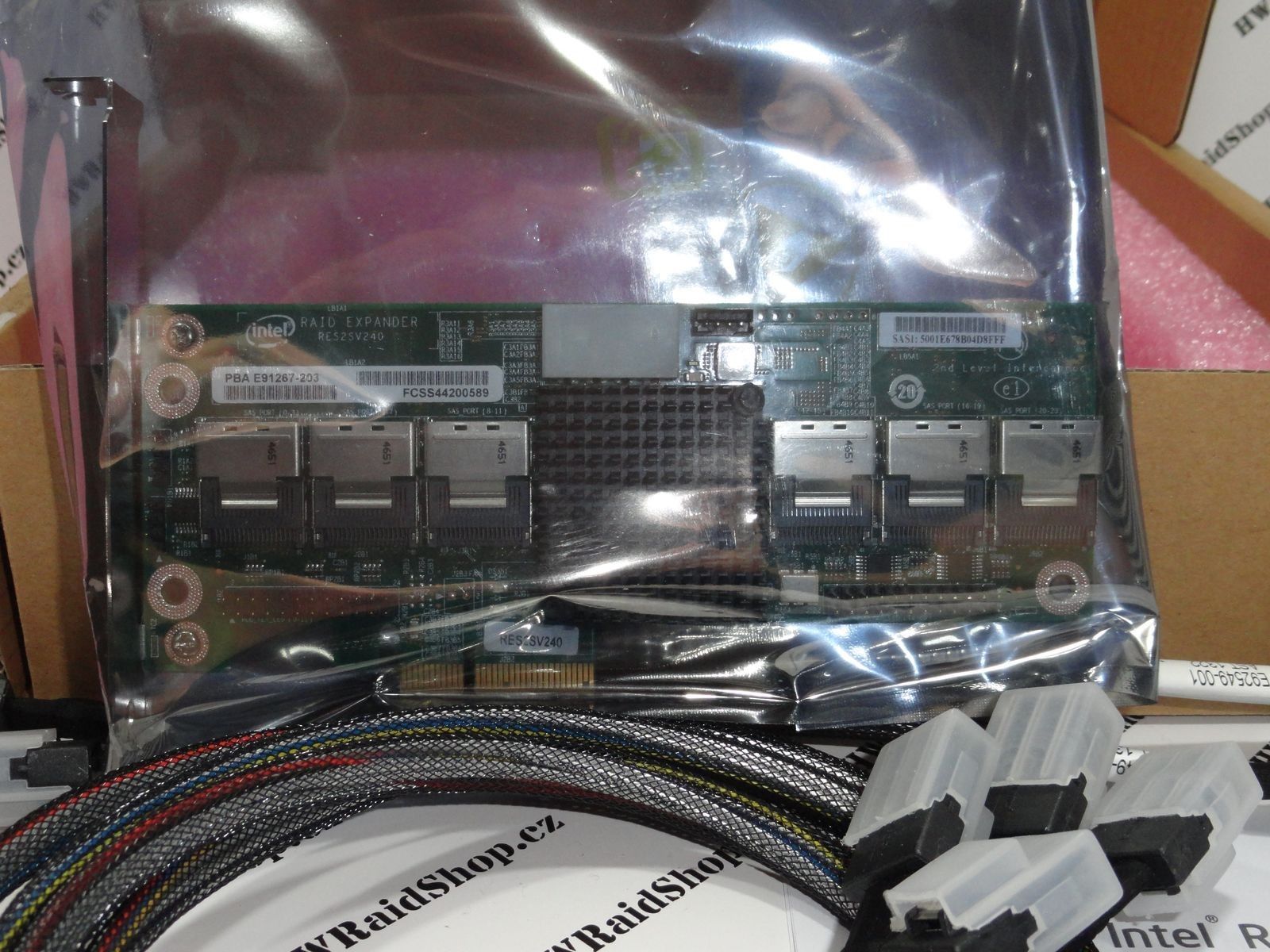

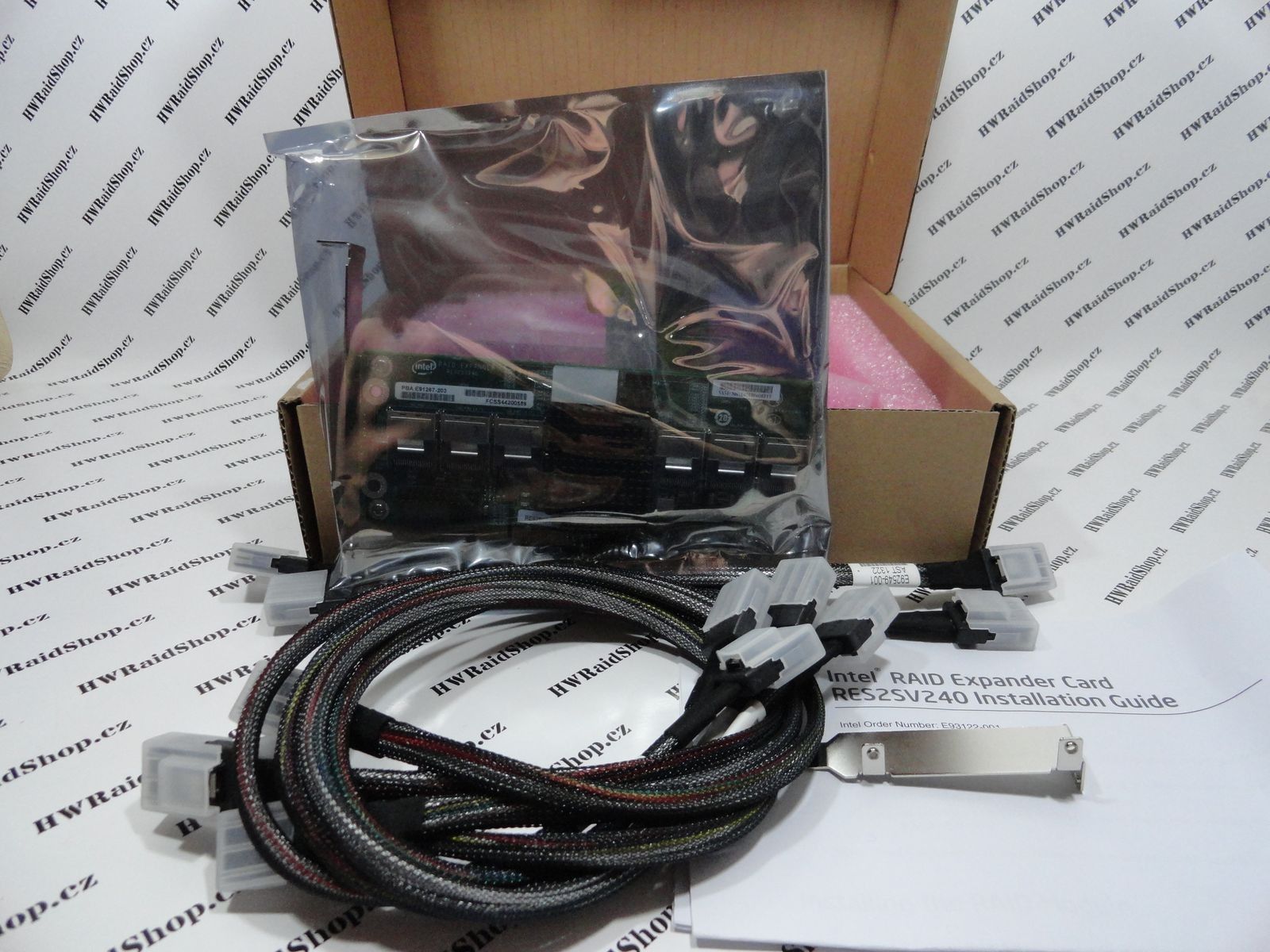

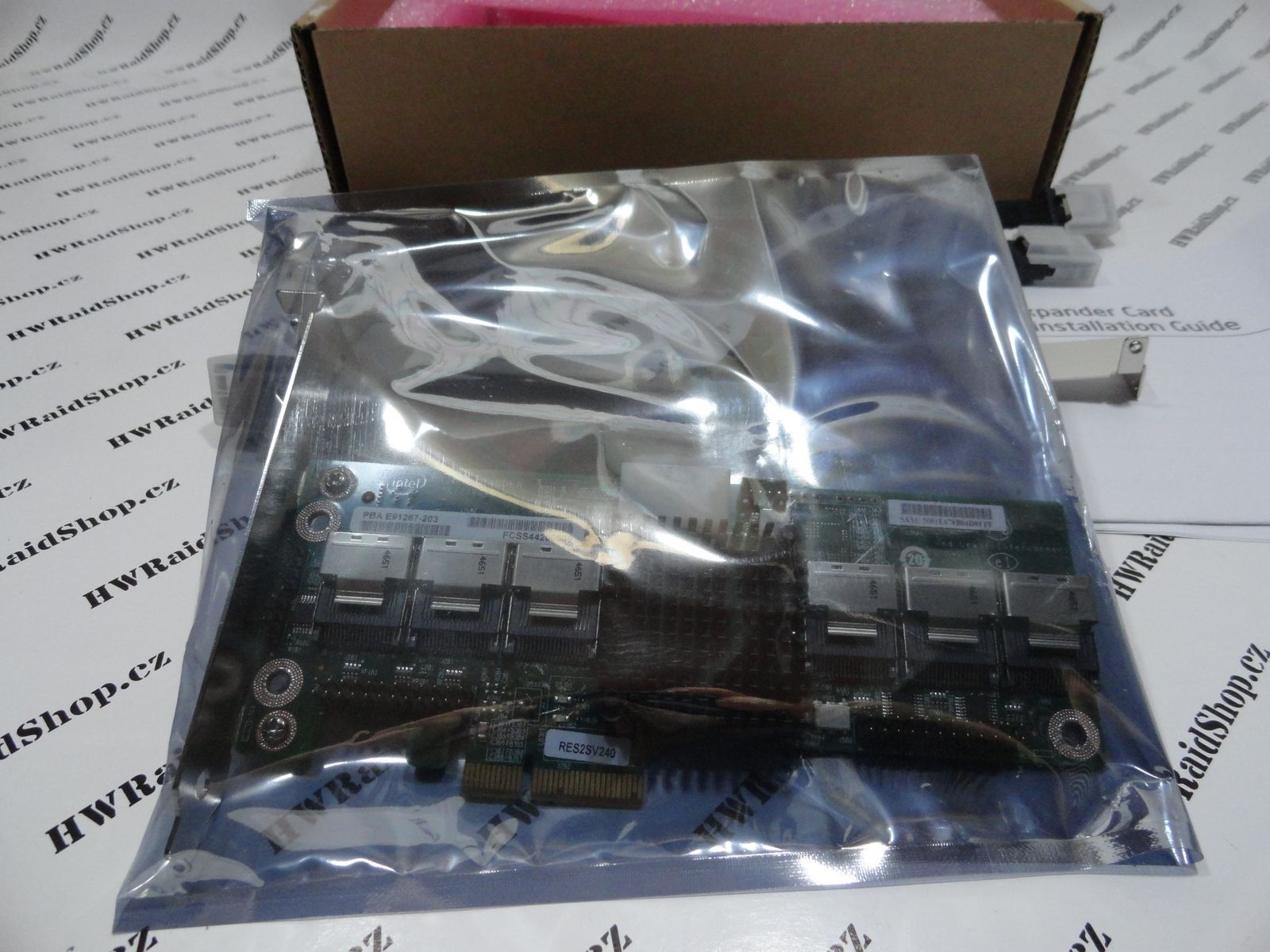

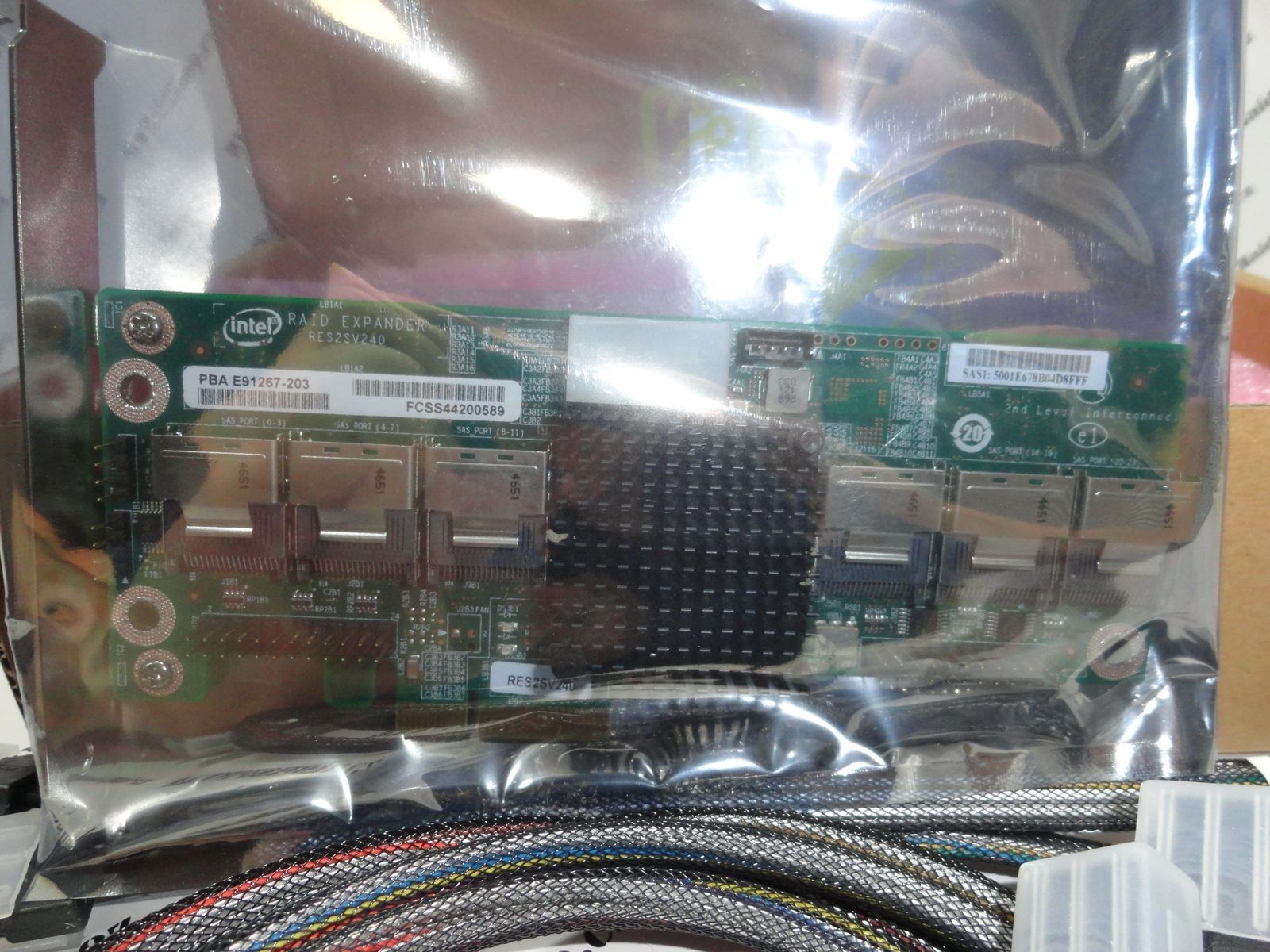

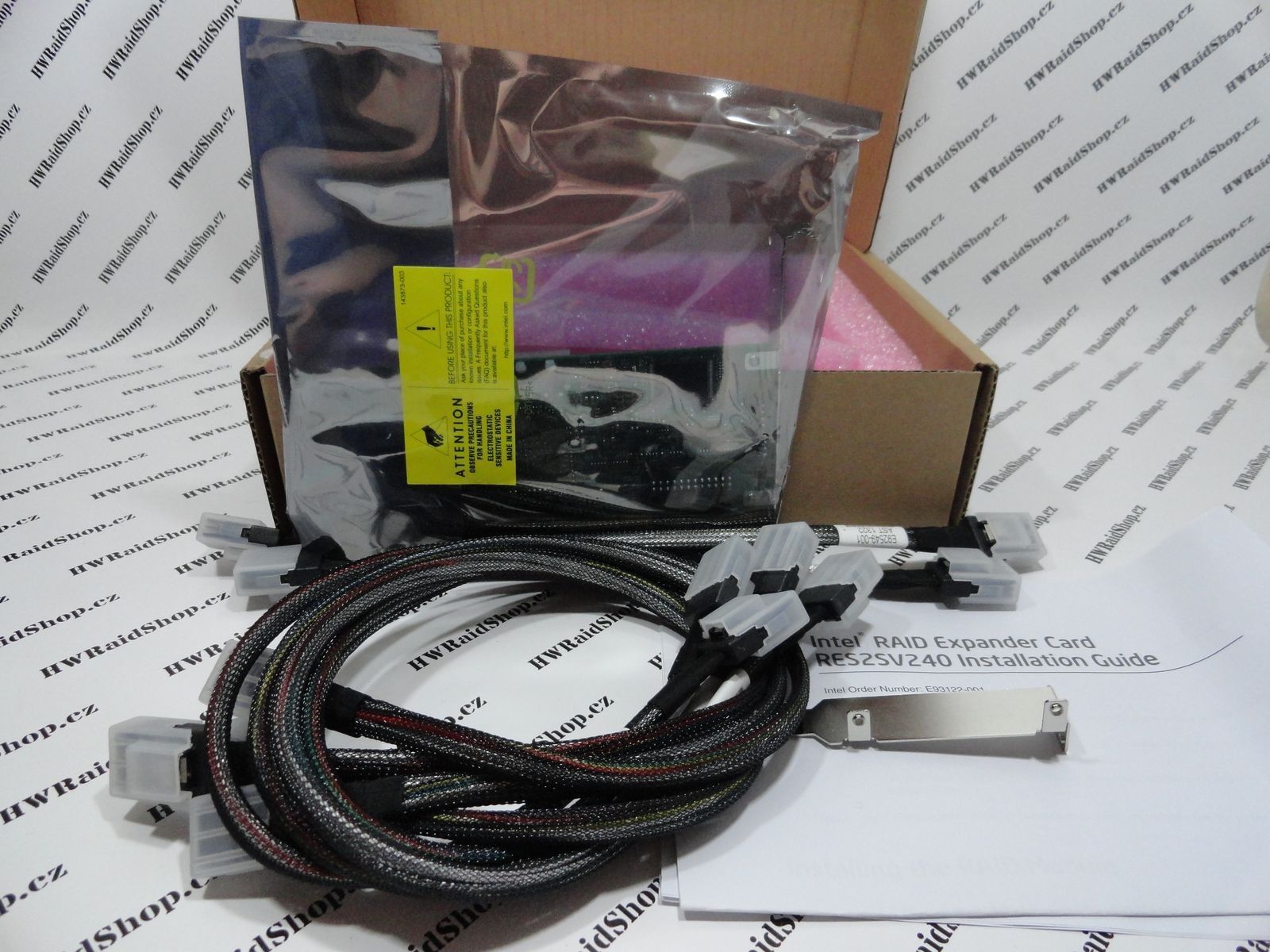

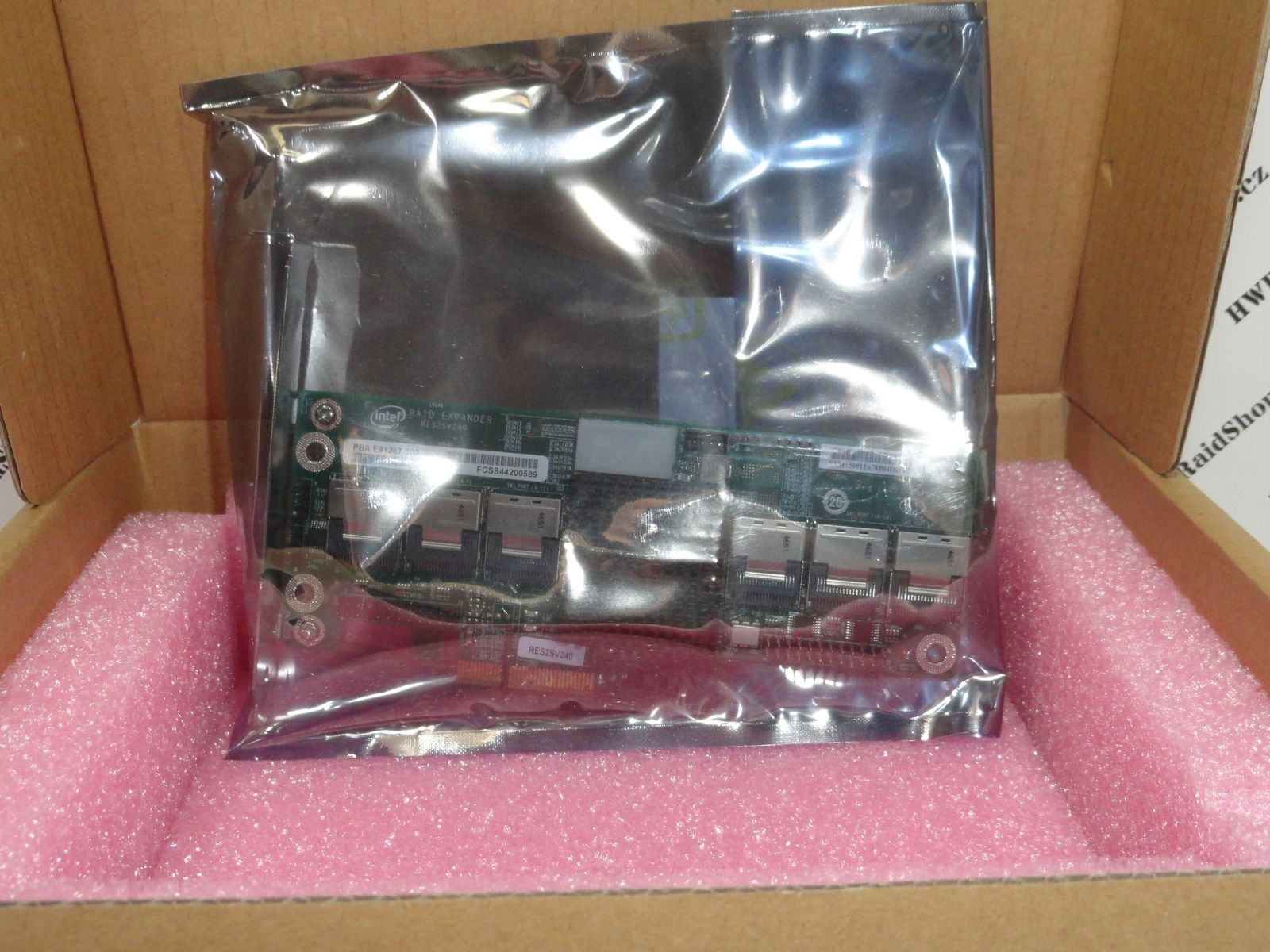

As the perfect complement for Intel’s SAS-2 generation RAID cards, this twenty-four port expander card offers ultimate flexibility for architecting a high drive count (greater than 8 drive) storage solution in any sized system. The low profile height enables simple installation into a 1U or 2U system with a low profile chassis cutout. In addition, the MD2-compliant depth (6.6") fits in motherboards with heat-sinks that would interfere with longer add-in cards. In cases where an add-in slot is not available, the Intel RAID Expander Card RES2SV240 can even be mounted to a chassis wall or air-duct.

Excellent Performance Overall performance of the RES2SV240 is on par with Intel’s SAS-2 high port count RAID with transfer rates of up to 6Gb/s per port. While today’s high port count RAID cards typically include an expander on the card, a RES2SV240-based solution separates the expander from the RAID card for more system design flexibility.

Low-cost Alternative to High Port Count RAID Cards Provides a more economic solution that is similar to a 16 or 20 high port count card, but has more flexibility as the RES2SV240 can be teamed up with a wide variety of 4 or 8 port SAS RAID card/modules to offer features that are best suited to customer needs.
