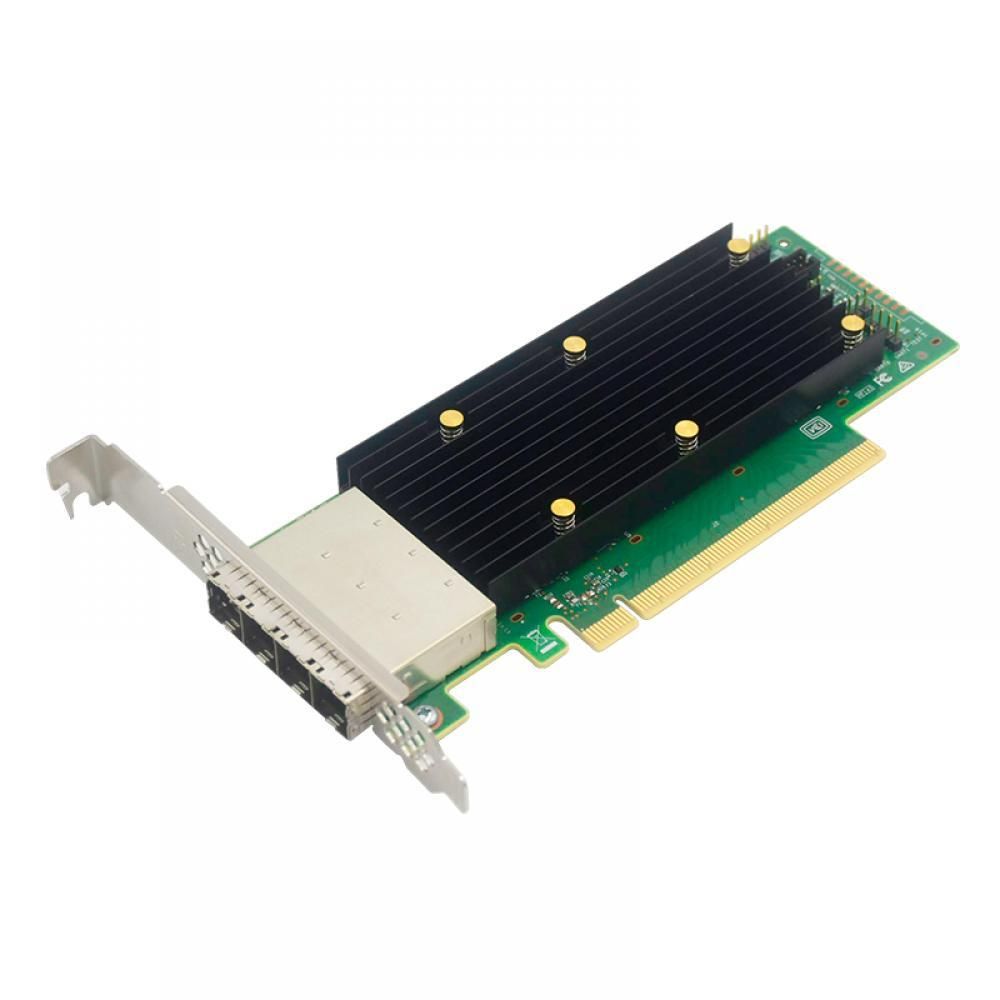

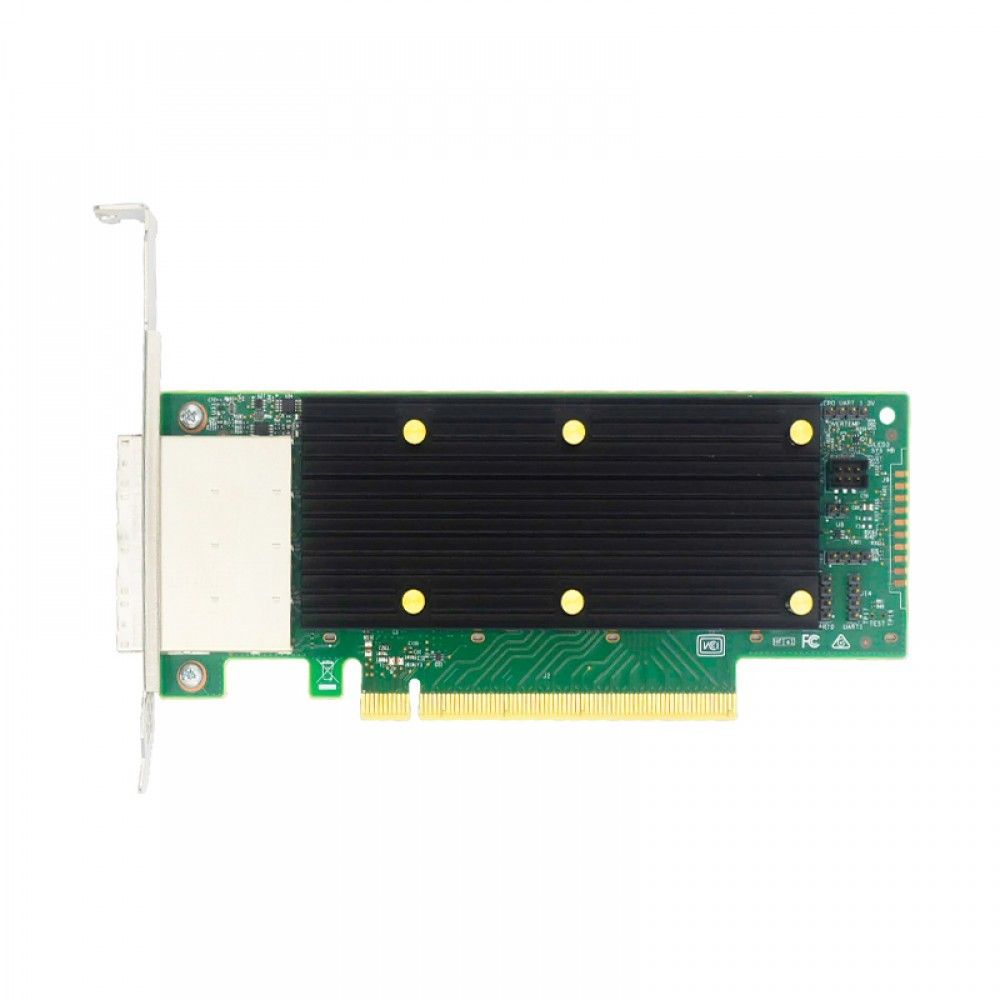

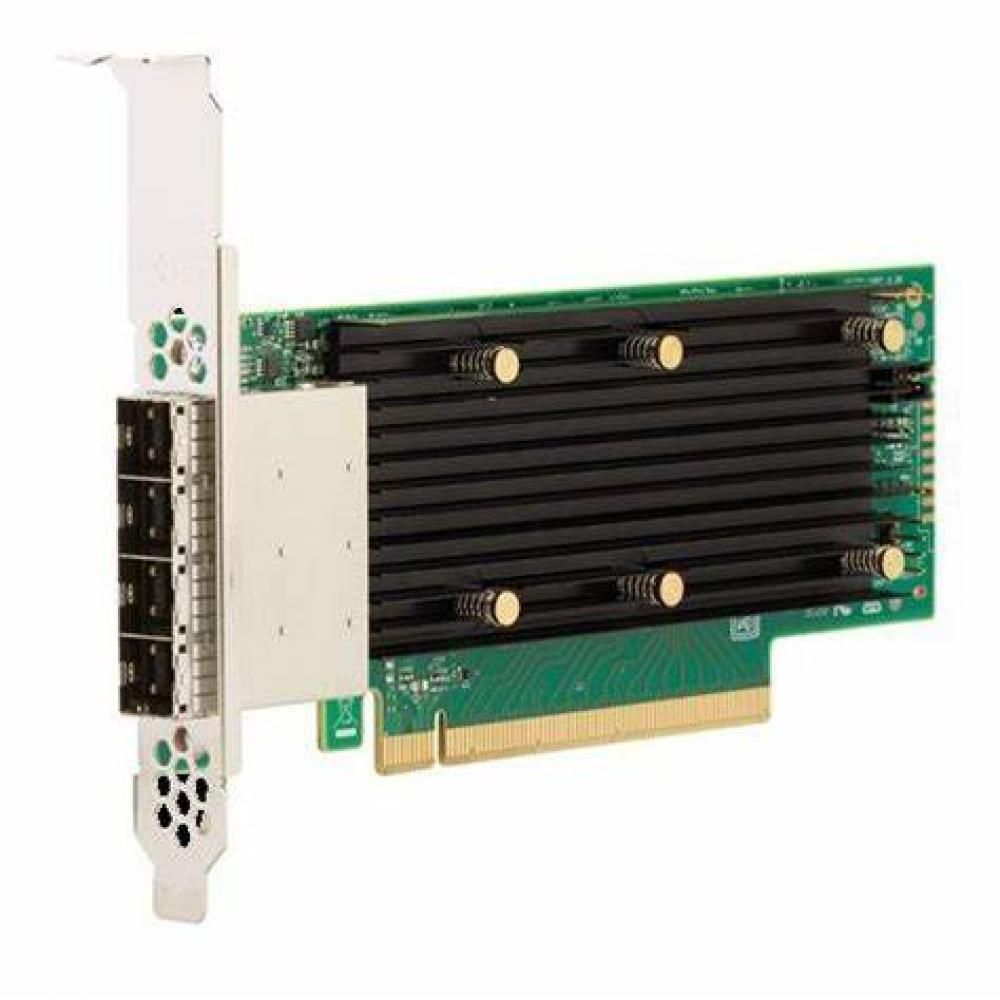

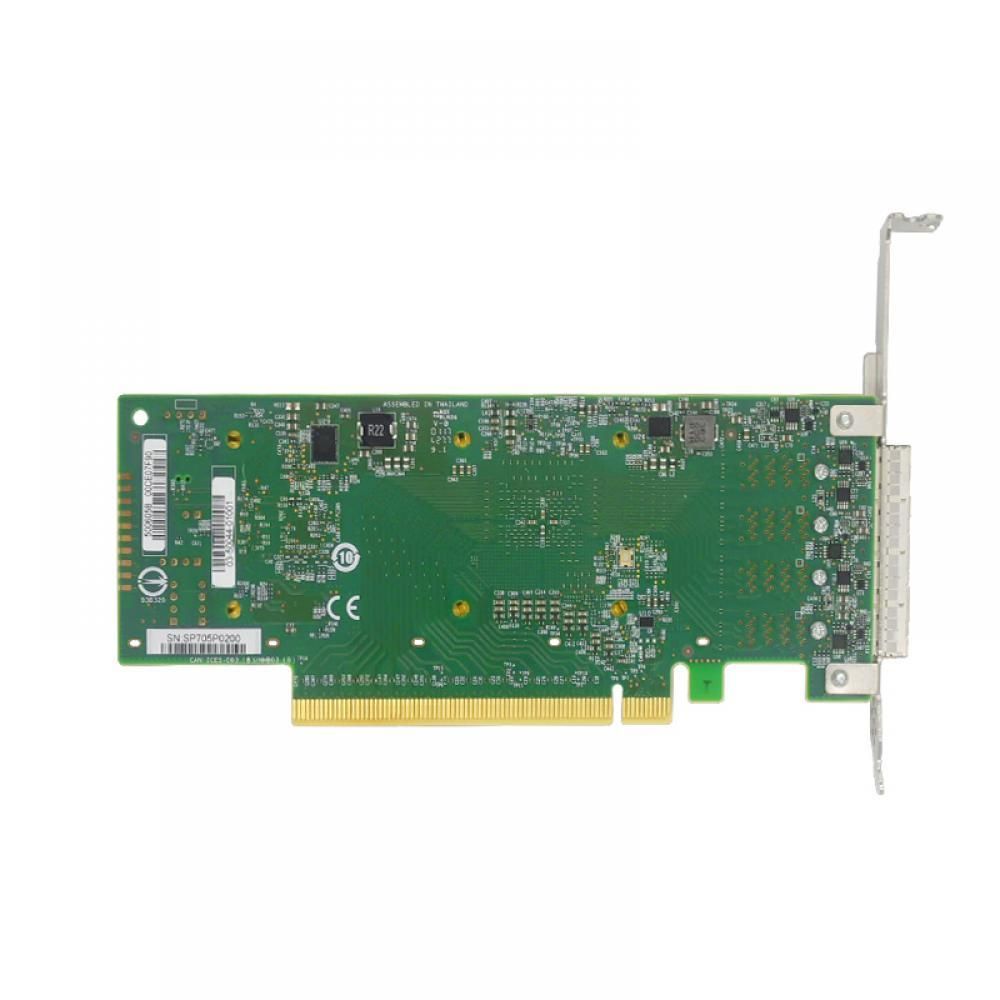

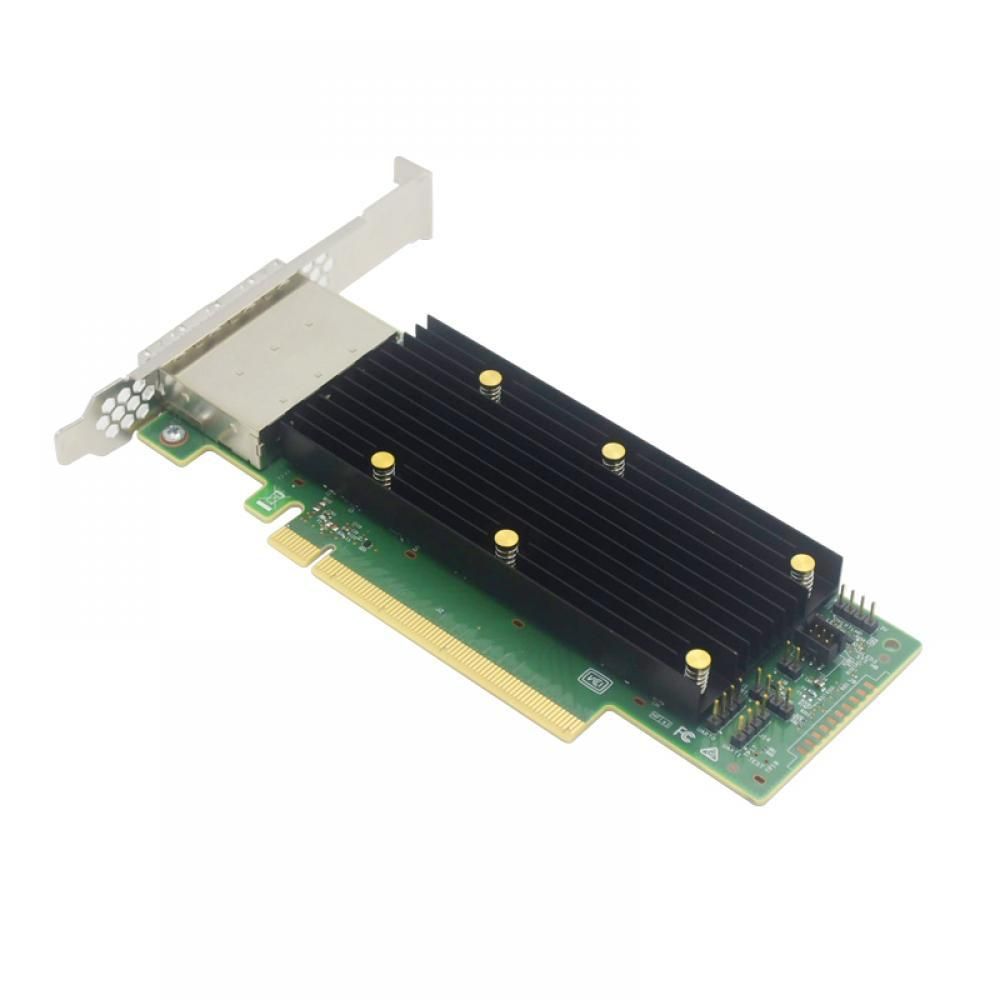

Broadcom HBA 9405W-16e Tri-Mode Storage Adapter

Stránky o produktu:

 https://docs.broadcom.com/doc/12380766

Popis produktu:

Broadcom LSI HBA 9405W-16e, 12Gb/s, NVMe 4-port/ SAS/SATA 16-port ext, PCI-E 3.1 x8, konektor 4x Mini-SAS HD SFF-8644

The industry's first single-chip, x16 low-profile HBA, the 9405W-16e, is ideal for high-performing, bandwidth-intense applications. The 9405W-16e enables external communication to PCIe JBOFs with the same management utilities customers are familiar with when connecting to SAS JBODs.

With the high sequential throughput, the 9405W-16e adapter delivers the performance and scalability needed by critical applications such as video streaming, medical imaging and big data analytics.

•Connects up to 1024 SAS/SATA devices and 24 NVMe
•Provides maximum connectivity and performance for high-end servers and applications
•Supports critical applications with the bandwidth of PCIe® 3.1 connectivity
•Ideal for connecting large-scale external storage enclosures

Specification/Value

Lifecycle Active
Host Bus Type PCIe 3.1 x16
Physical Dimensions 6.600" x 2.712"
Devices Supported SAS/SATA: 1024; NVMe: 24

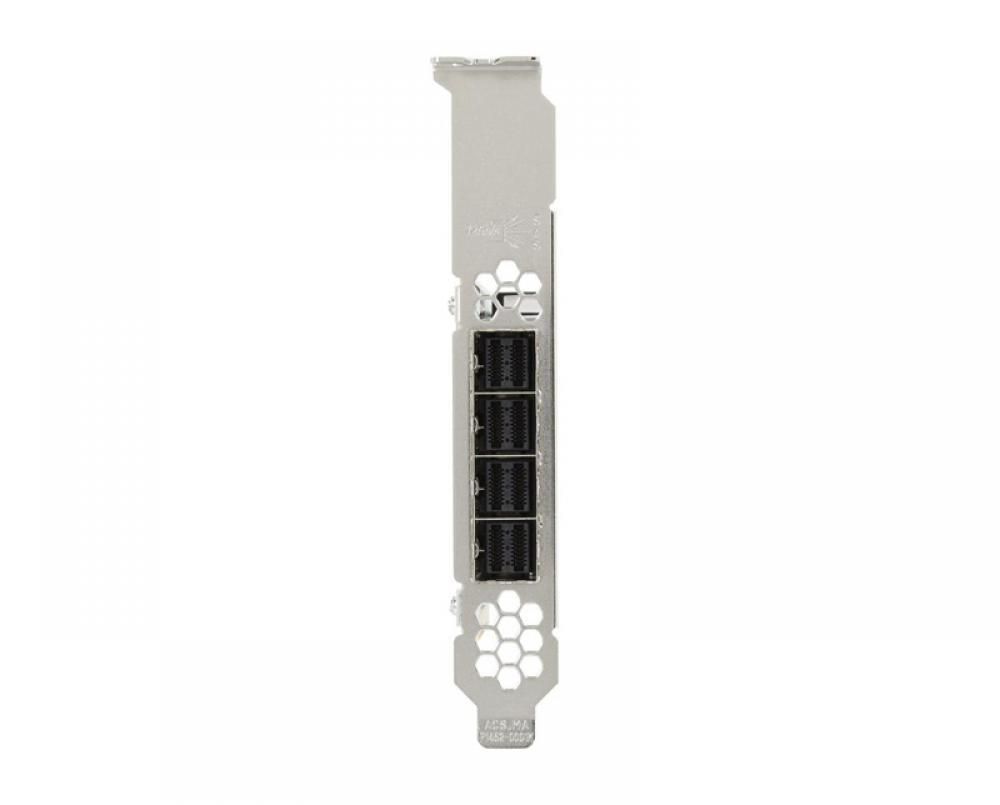

External Connectors 4 mini-SAS HD SFF8644
Operating Temperature 10° to 55° C
Operating Voltage (V) +12V +/-8%, 3.3V +/-9%

OS Support Microsoft Windows, Linux, VMware.

PCI Power Typical Power: 14.0W

Cable Support Passive Copper, Active copper, Active Optical

I/O Controller SAS3616W

MTBF > 4,500,000 hours at 40° C
Operating Humidity 20% to 80% Non-condensing
Brackets Full height and low profile

Warranty 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
Data Transfer Rates 12Gb/s SAS-3 Compliant
Management Software LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
