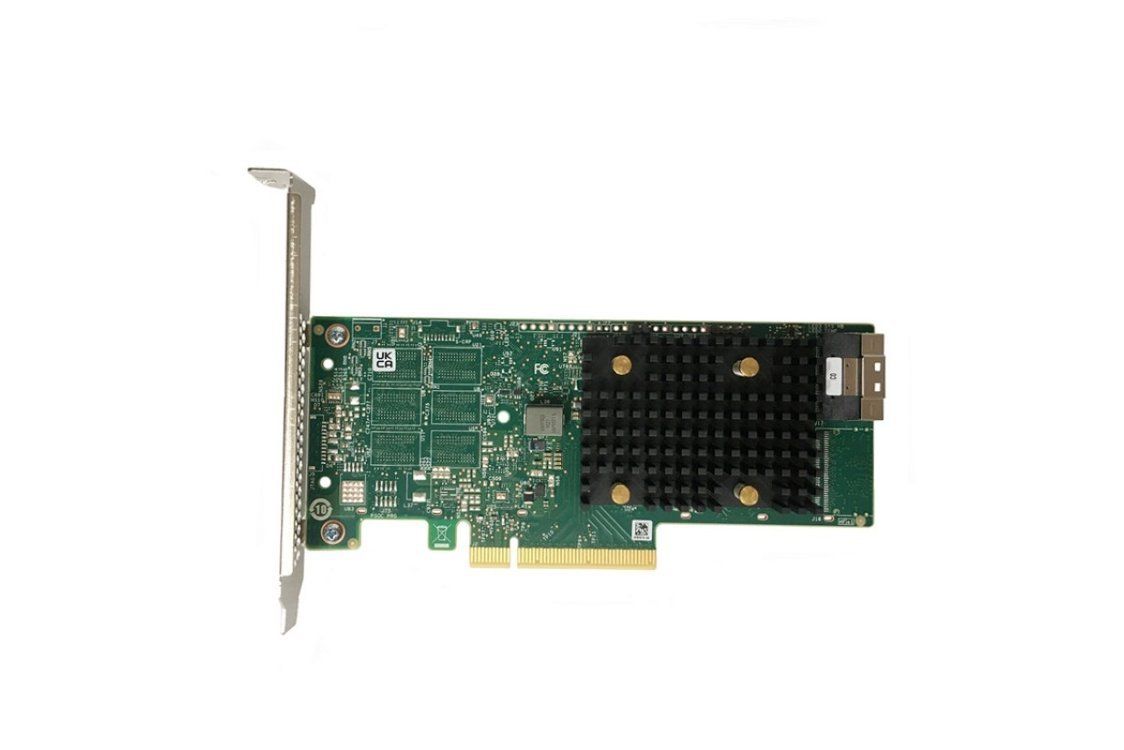

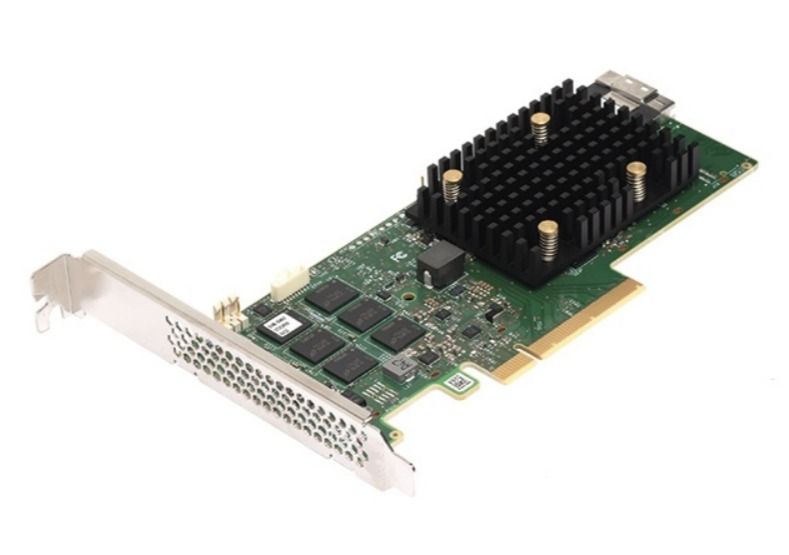

Broadcom HBA 9500-8i Tri-Mode Storage Adapter

Stránky o produktu:

https://www.broadcom.com/products/storage/host-bus-adapters/sas-nvme-9500-8i

Popis produktu:

HBA 9500-8i Tri-Mode Storage Adapter

PCIe Gen 4.0 HBA provides high bandwidth and unprecedented flexibility to today’s expanding data centers with Tri-Mode connectivity and NVMe devices

The 9500-8i Tri-Mode, PCIe Gen 4.0 HBA with eight internal ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9500-8i adapter delivers the performance and scalability needed by critical applications.

Connects up to 1024 SAS/SATA devices or 32 NVMe devices
Provides maximum connectivity and performance for high-end servers and applications
Support critical applications with the bandwidth of PCIe® 4.0 connectivity
Universal Bay Management (UBM) Ready

Specification / Value
Lifecycle: Active
Typical Power: 5.96W
Host Bus Type: x8 lane PCI Express 4.0
Physical Dimensions: Low profile 6.127” x 2.712”
Devices Supported: SAS/SATA: 1024, NVMe: 32
Internal Connectors: 1 x8 SFF-8654 (SlimSAS)
Internal Ports: 8
Operating Temperature: 0°C to 55°C

OS Support: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD

I/O Controller: SAS3808
MTBF: > 5,000,000 hours at 40° C
Operating Humidity :20% to 80% Non-condensing
Brackets: Full height and low profile

Management Software :LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
