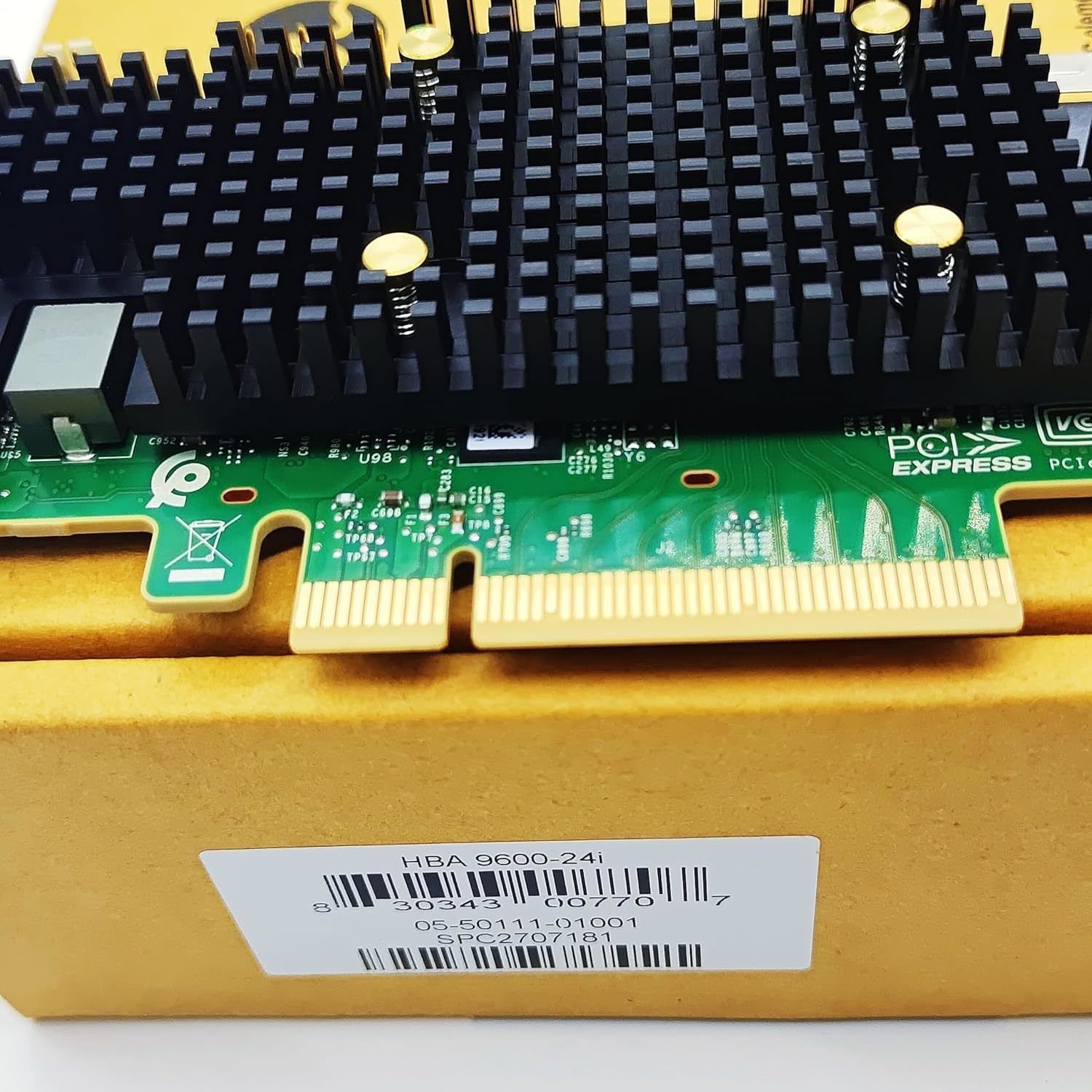

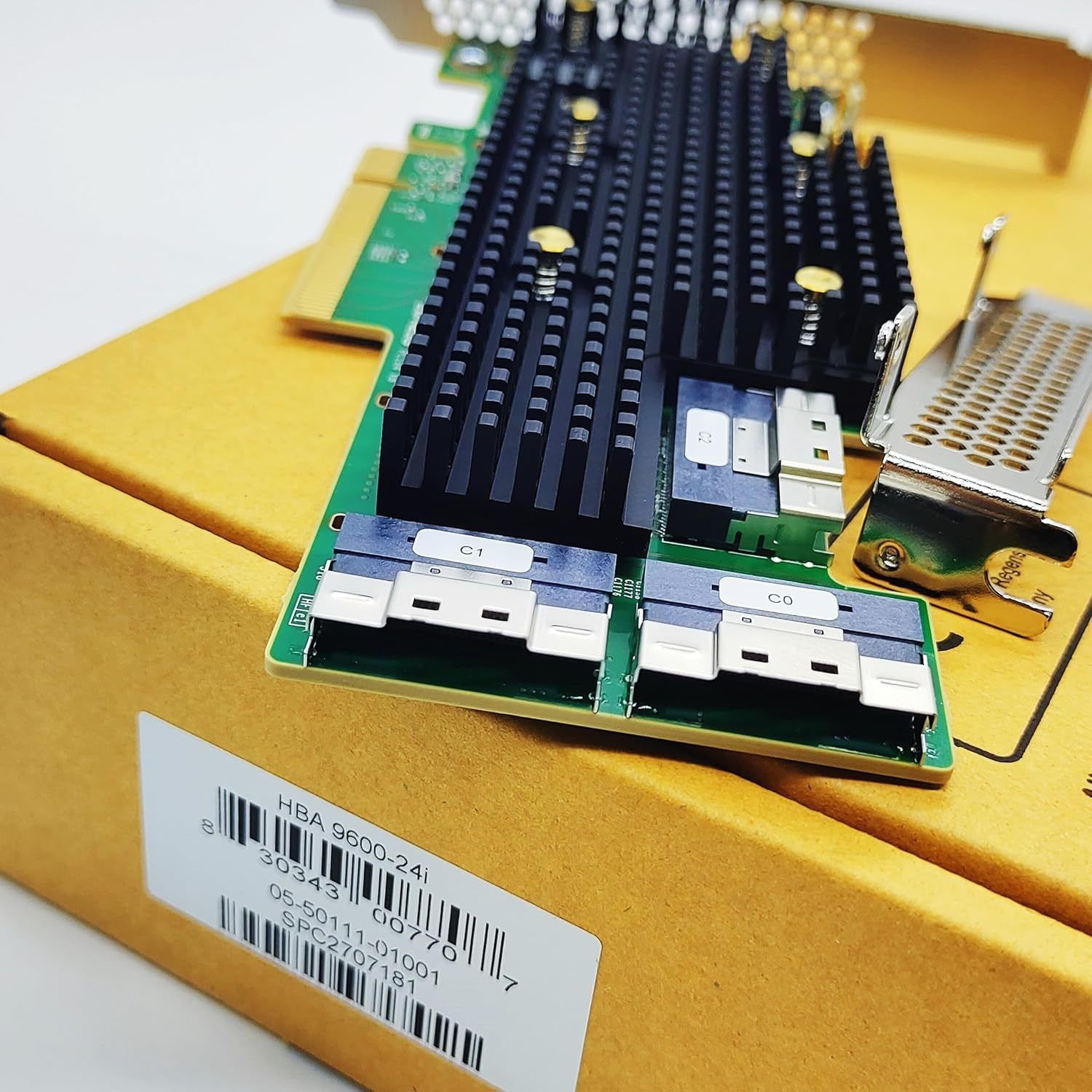

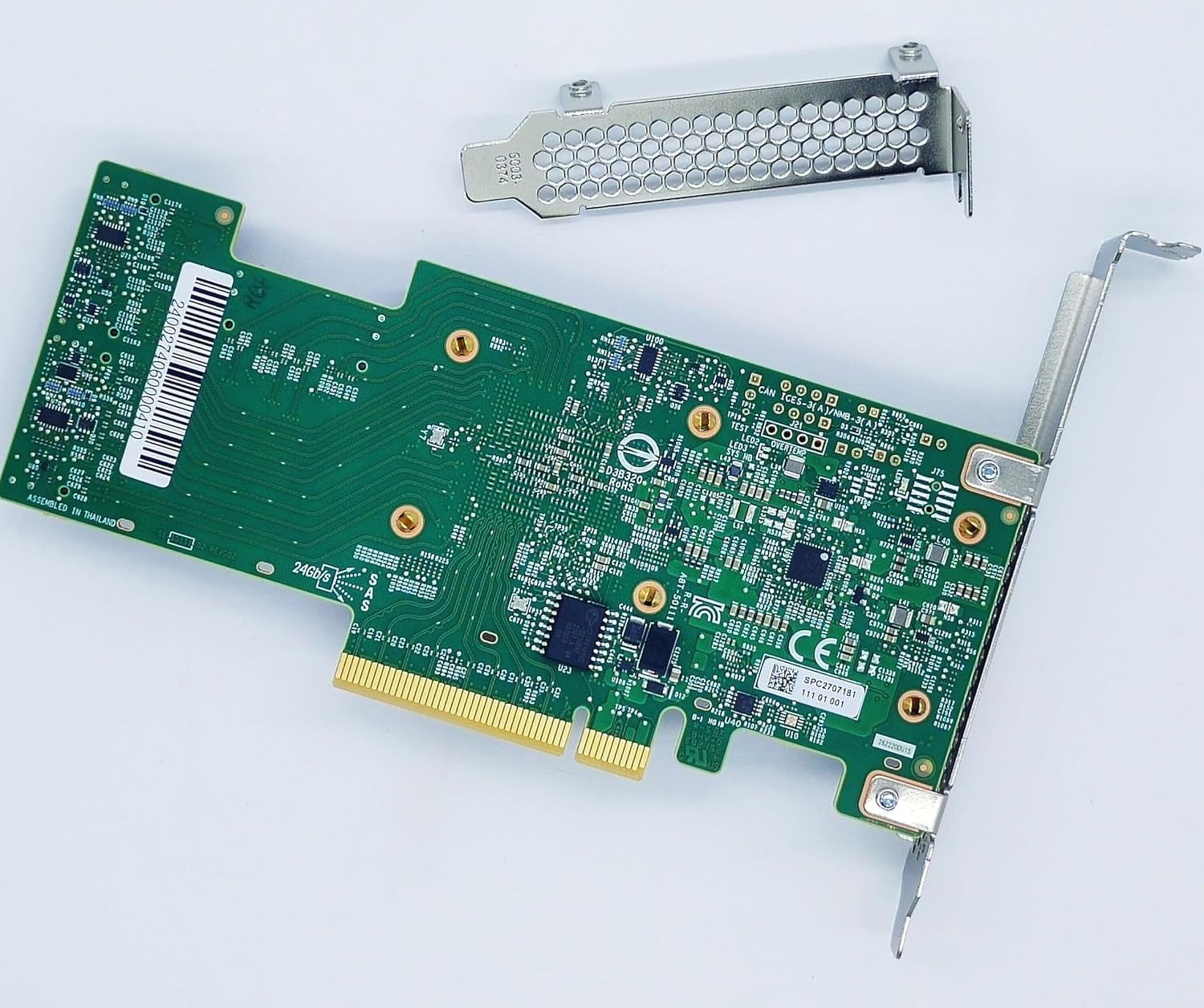

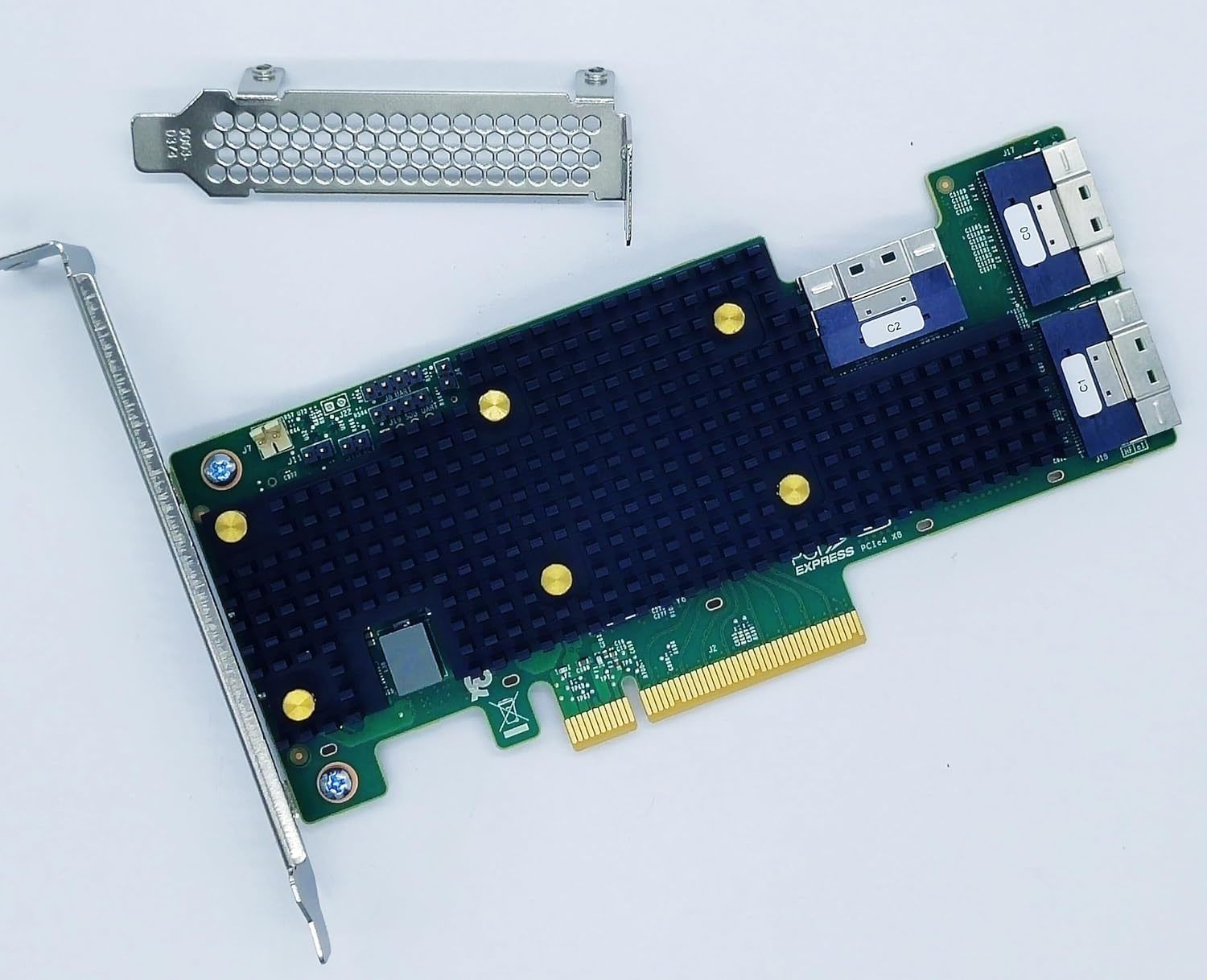

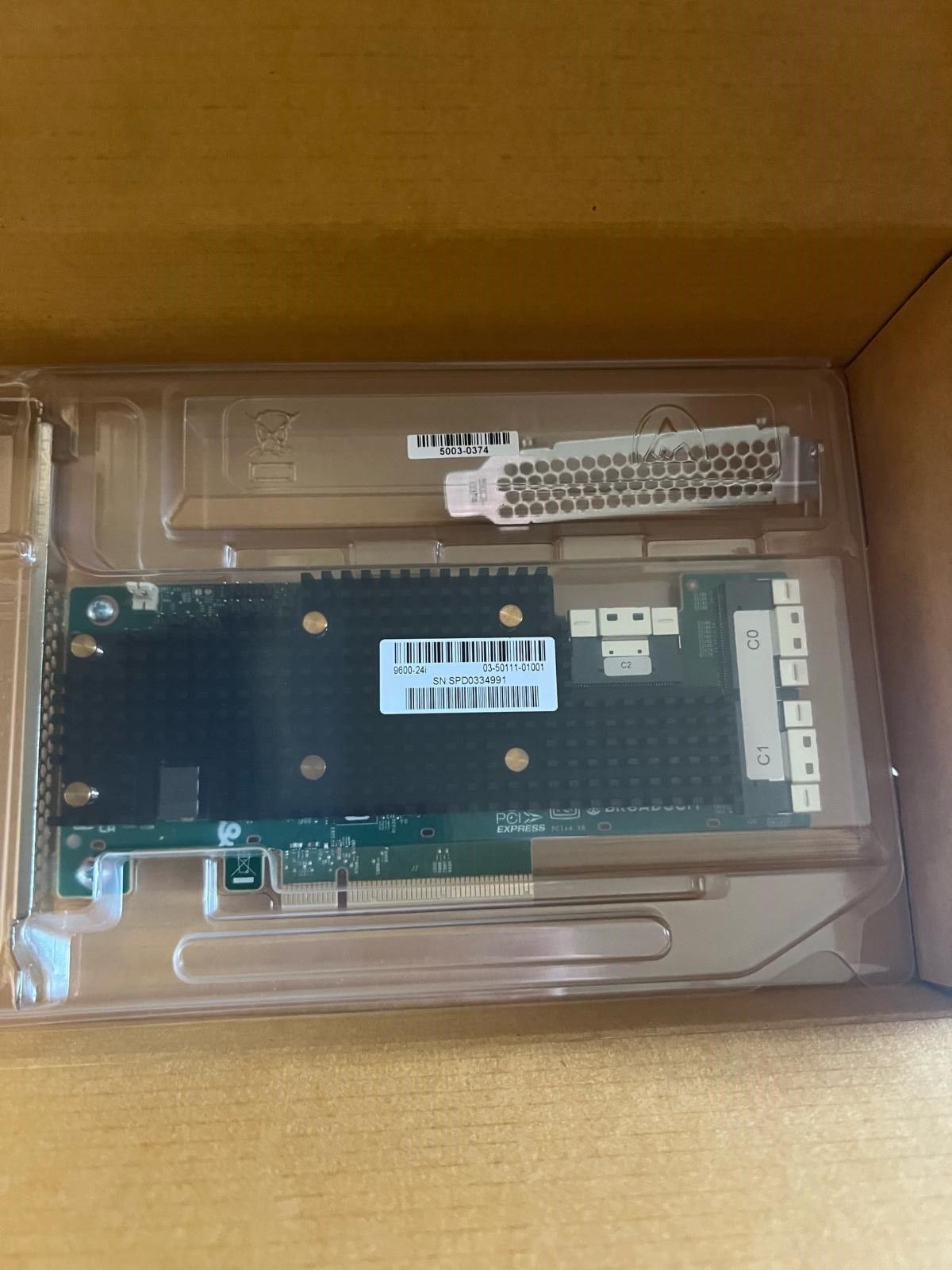

Broadcom HBA eHBA 9600-24i Tri-Mode Storage Adapter

Stránky o produktu:

https://docs.broadcom.com/docs/9600-Series-PB

Popis produktu:

Broadcom eHBA 9600-24 (SAS4024IOC)

Rozhraní: PCIe Gen4  8x

Rychlost přenosu dat (max): PCIe data transfer rates of up to 16.0 GT/s per lane and is backward compatible to 5.0/2.5 GT/s.

Vstupní rozhraní:  SlimSAS 24G SFF-8654 internal

Formát rozšiřovací karty: Plná výška / nízký profil.

Střední doba mezi poruchami (MTBF): 5000000 h

Certifikace: Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class....

Spotřeba elektrické energie: 20 W.

Applications
 • High-port, direct-attached SAS/SATA/NVMe high-connectivity applications
 • Flexible solutions for cloud computing
 • Server and external storage applications Key Features
 • 3rd-Generation Tri-Mode Storage Interface
 • 22.5, 12, and 6Gb/s SAS and 6Gb/s SATA data transfer rates
 • x16 and x8 PCIe Gen 4.0 Host Interface
 • Hardware Secure Boot and Attestation
 • Universal Backplane Management (UBM) ready (SFF-TA-1005)
 • Unified Drivers and Utilities

The 9600-24i Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.With increased bandwidth and IOPS performance compared to previous generations, the 9600-24i eHBA delivers the performance and scalability needed by critical applications.
