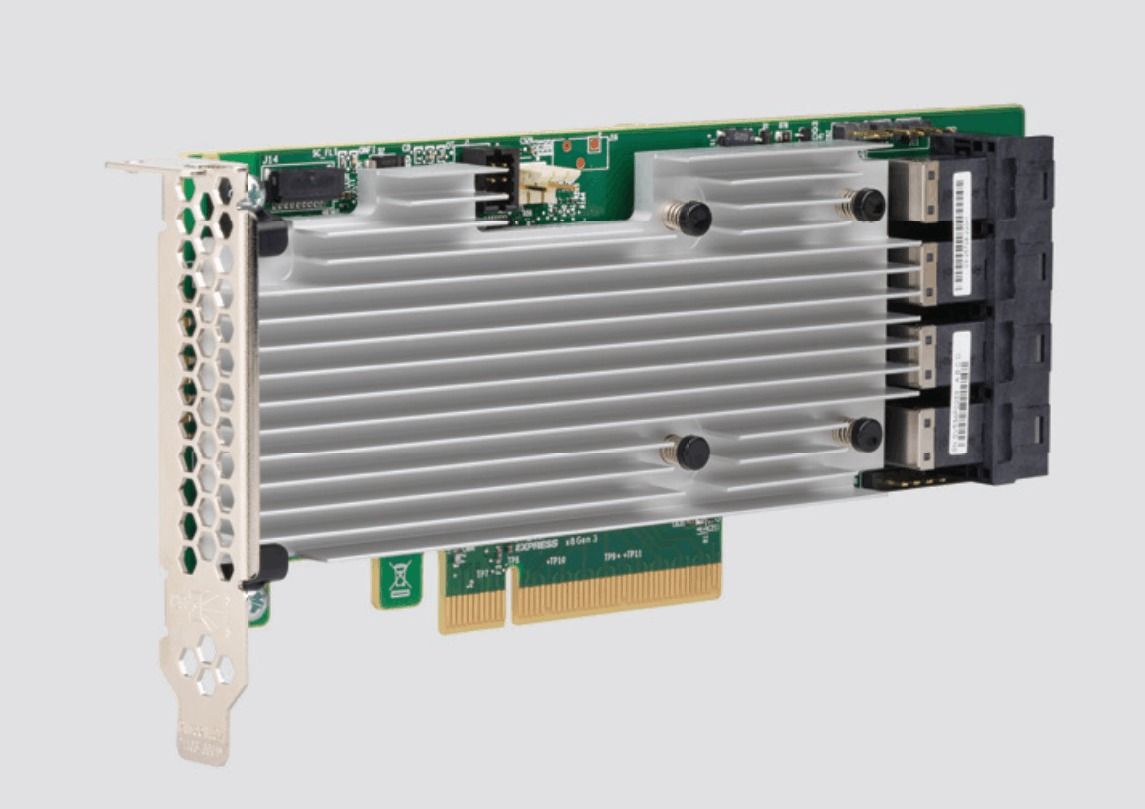

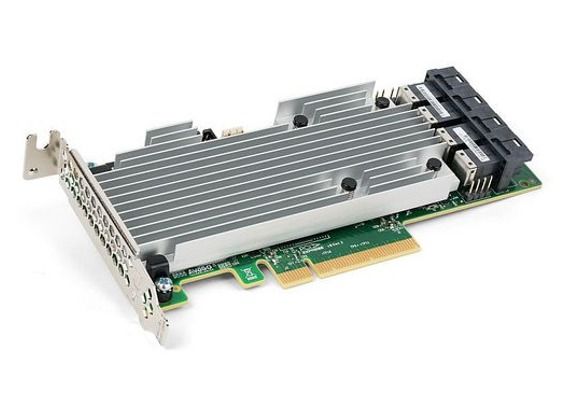

MegaRAID SAS 9361-16i SGL

16-Port Int. 12Gb/s PCIe 3.0 2GB cache

- PCI-Express ×8 g3 MD2 low profile karta (156×69mm)
- Šestnách interních 12Gb/s SATA+SAS portů
- Čtyři mini-SAS HD interní konektory (SFF-8643)
- RAID 0, 1, 5, 6,10, 50 a 60
- LSISAS3316 12Gb/s Dual Core RAID-on-Chip 1200MHz PowerPC 476 dual core
- 2GB DDR3-1866 cache
- Volitelně CacheVault Power Module 02 (CVPM02) - PN: 05-50038-00
- Podpora až 240 SATA/SAS zařízení
- SGL balení obsahuje: Vlastní kartu, QuickInstalationGuide, LP bracket, Driver&Manual CD
- Včetně FastPath

Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9361-16i 12Gb/s RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

• Connect up to 16 SATA or SAS drives via direct connection inside the box or up to 240 drives leveraging SAS expander technology
• Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
• Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
• Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
• Add more protection and peace of mind with optional CacheVault® flash cache protection.

• [PDF] High Port Count 12 Gb/s PCI Express SATA + SAS RAID Controller
• [PDF] CacheVault Technology (CVM02, CVPM02, and CVPM05) Product Brief
