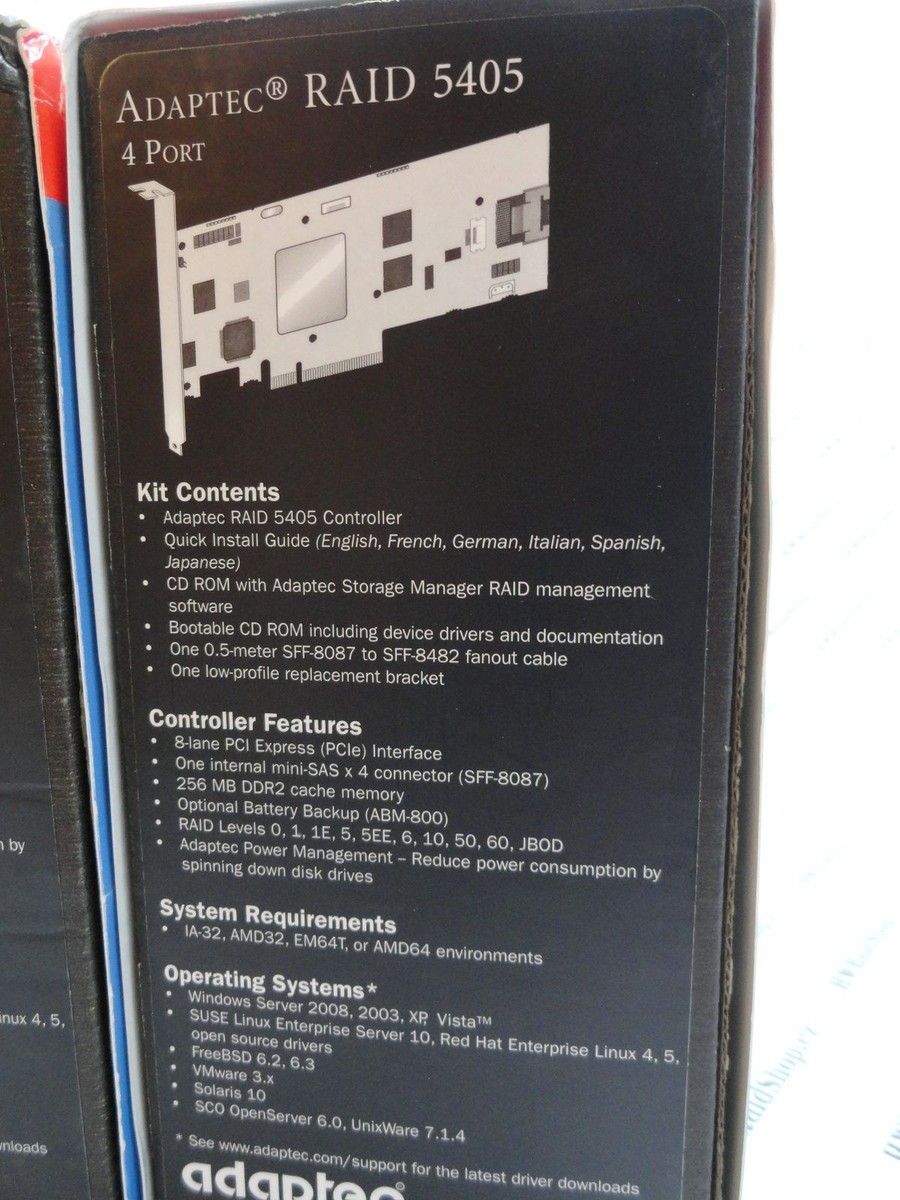

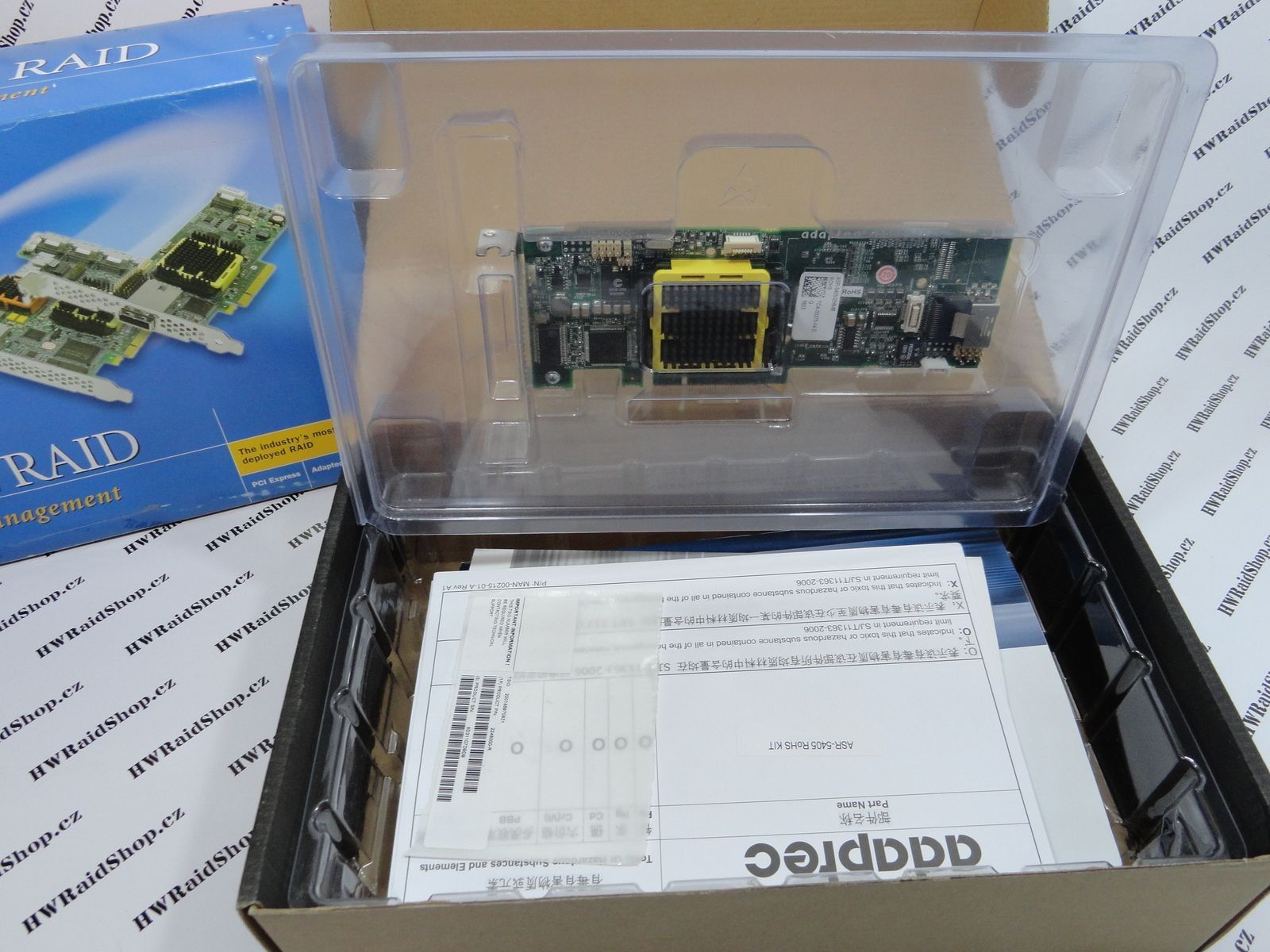

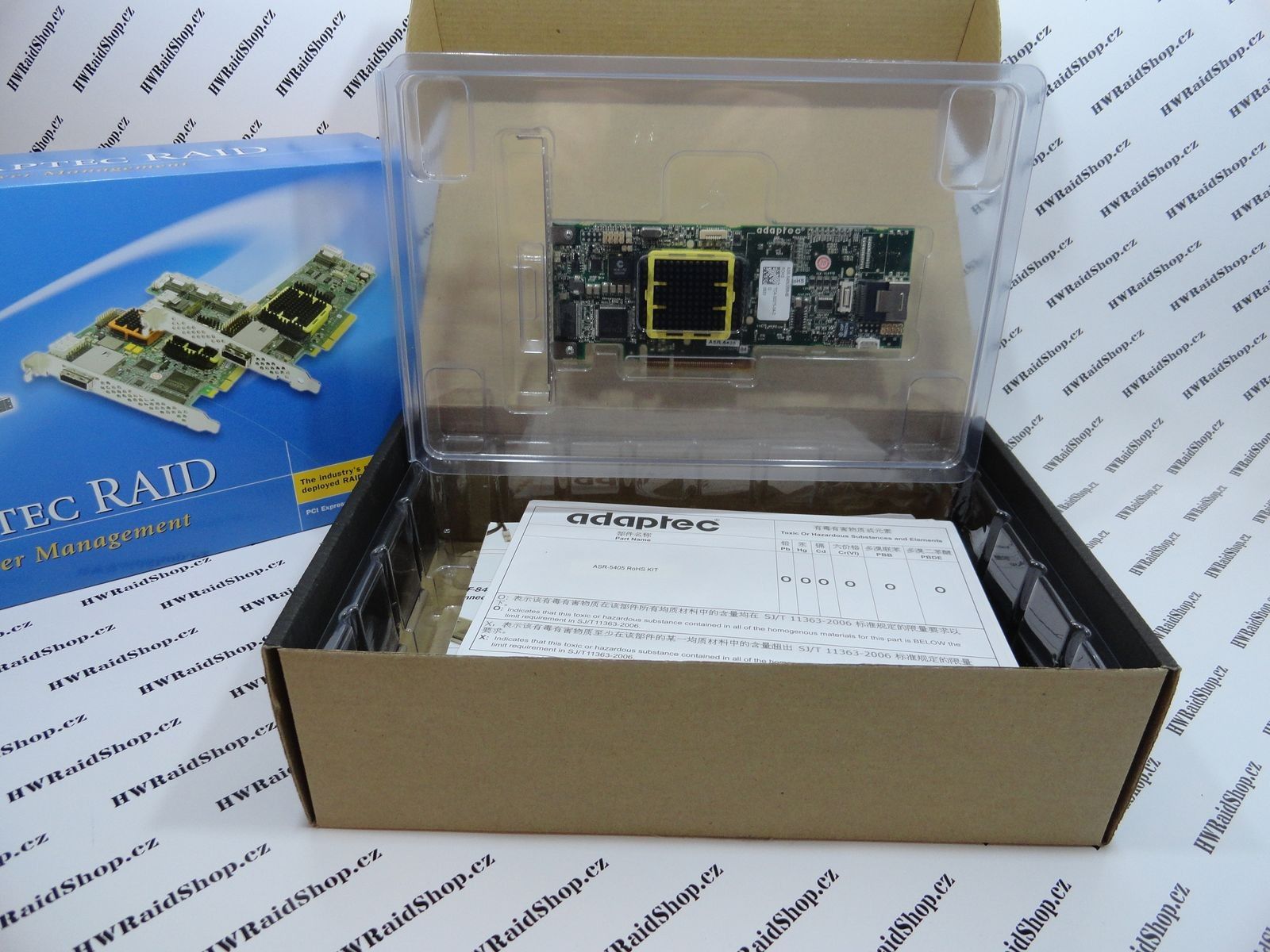

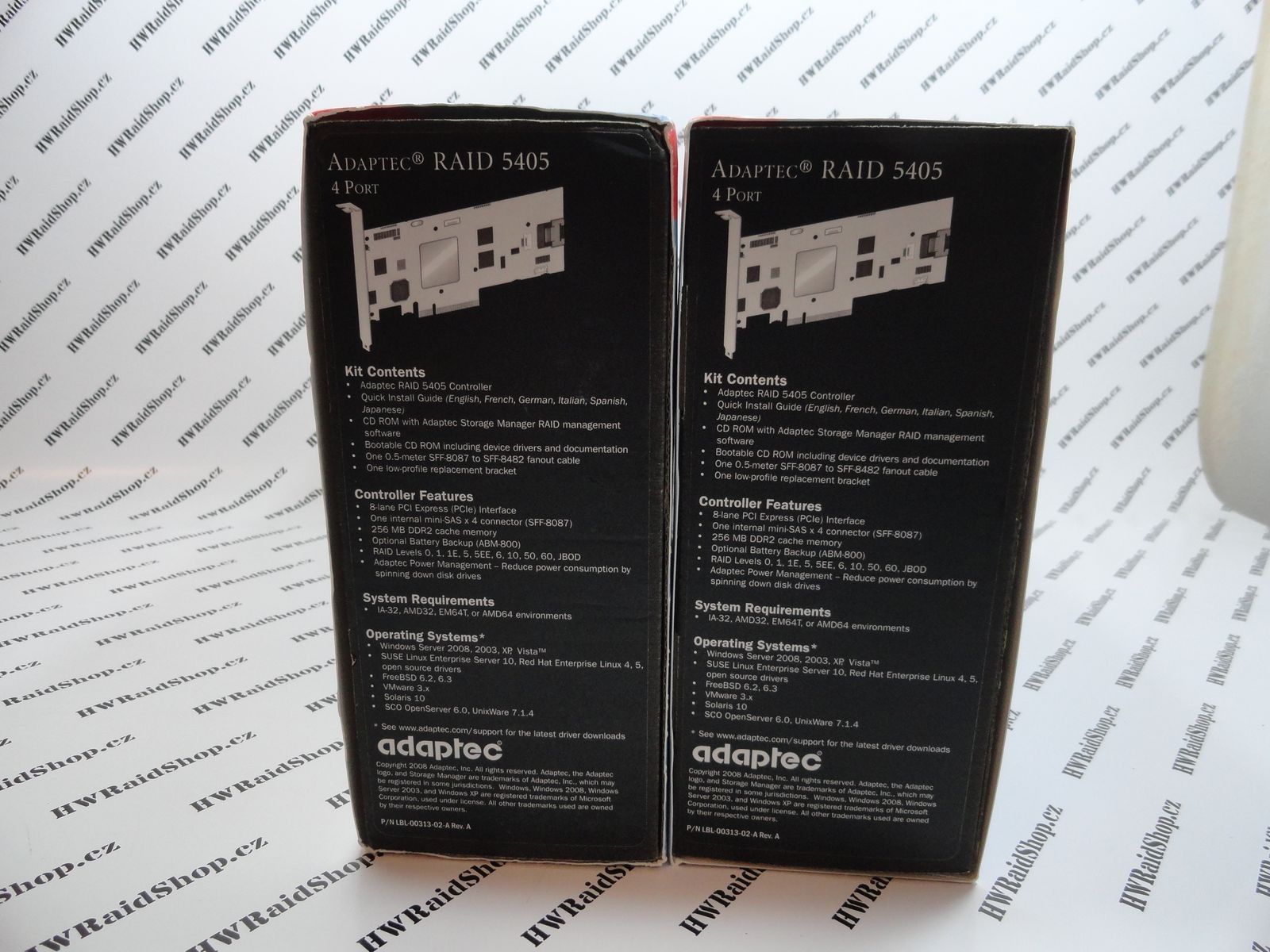

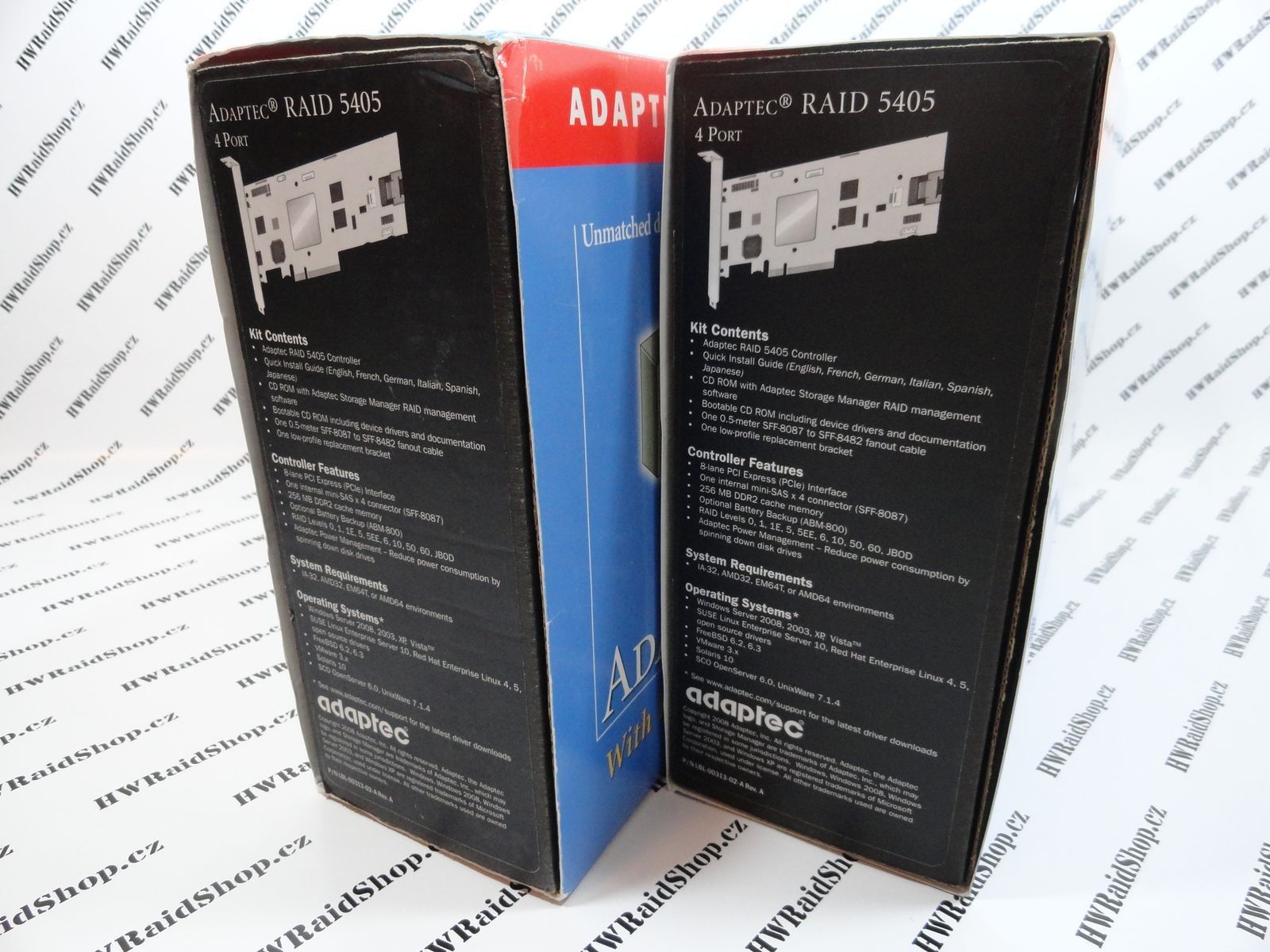

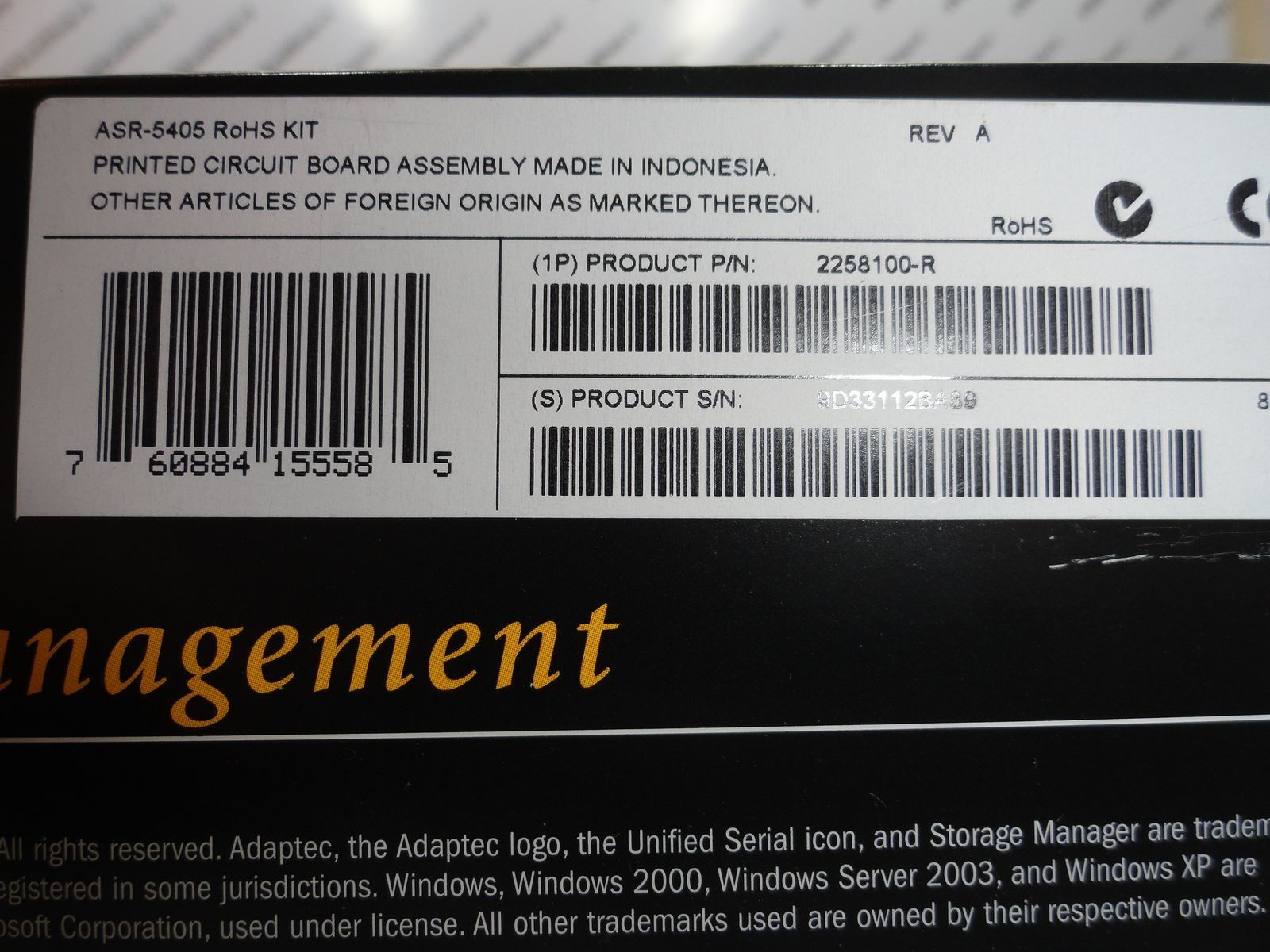

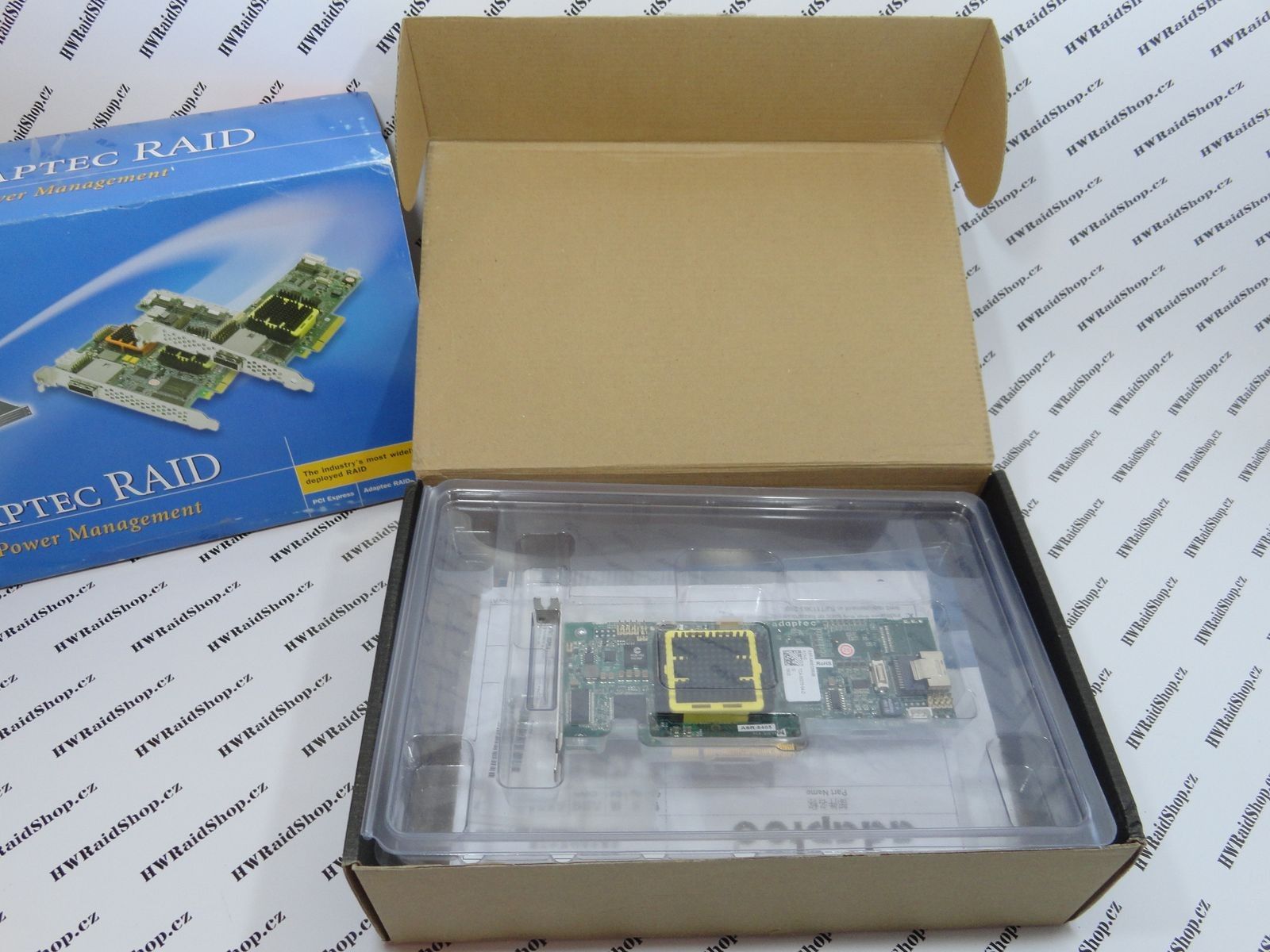

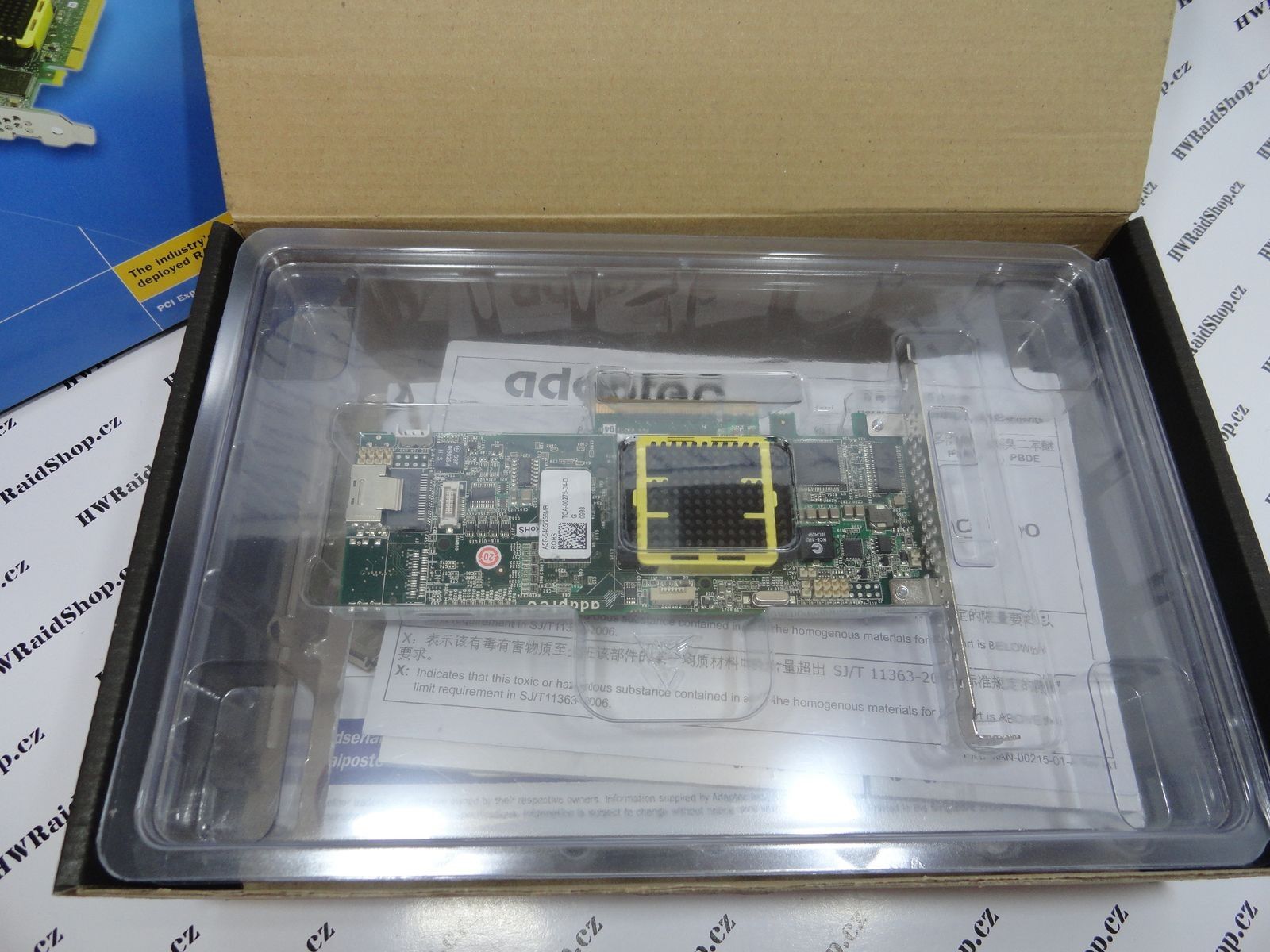

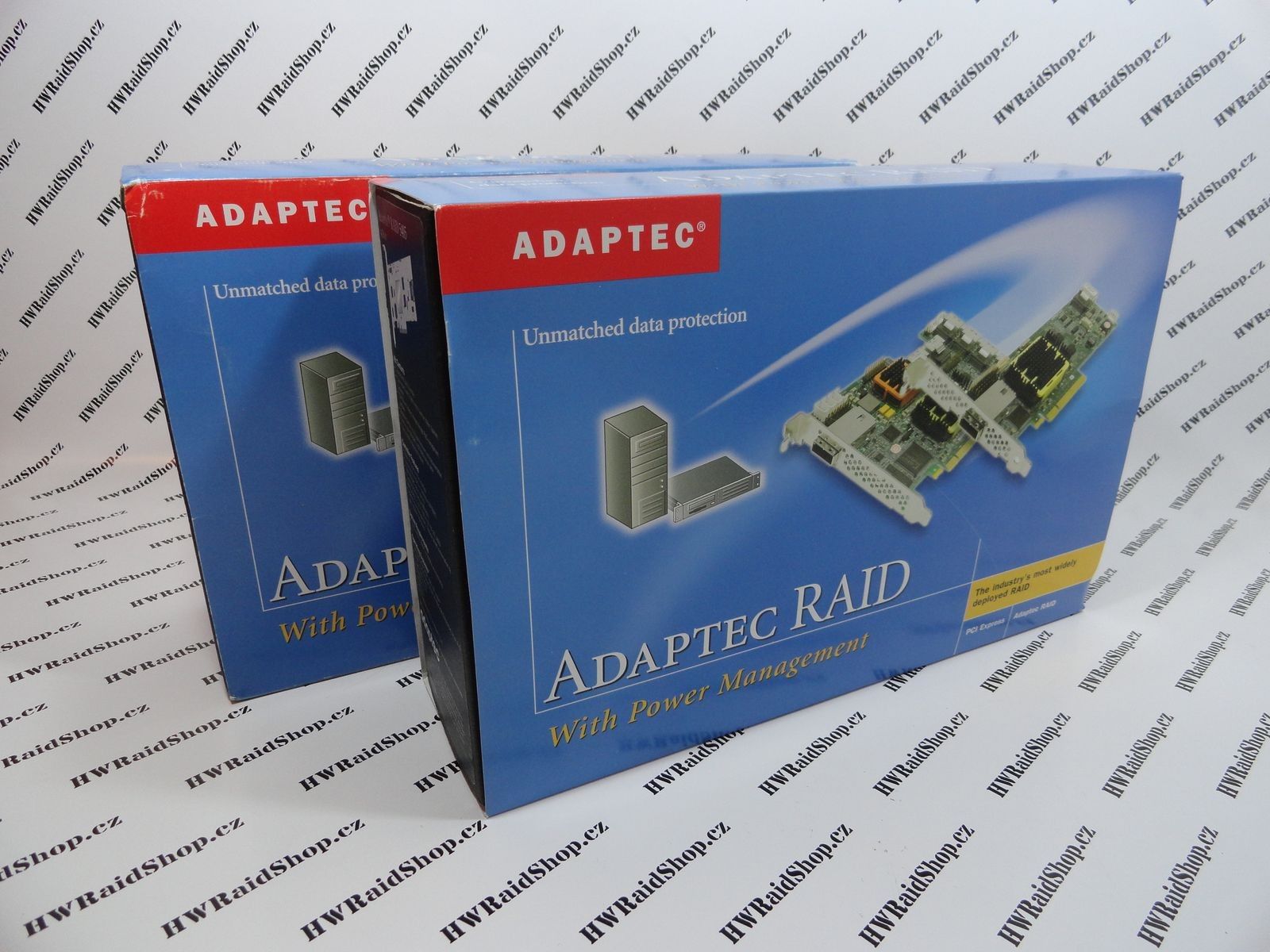

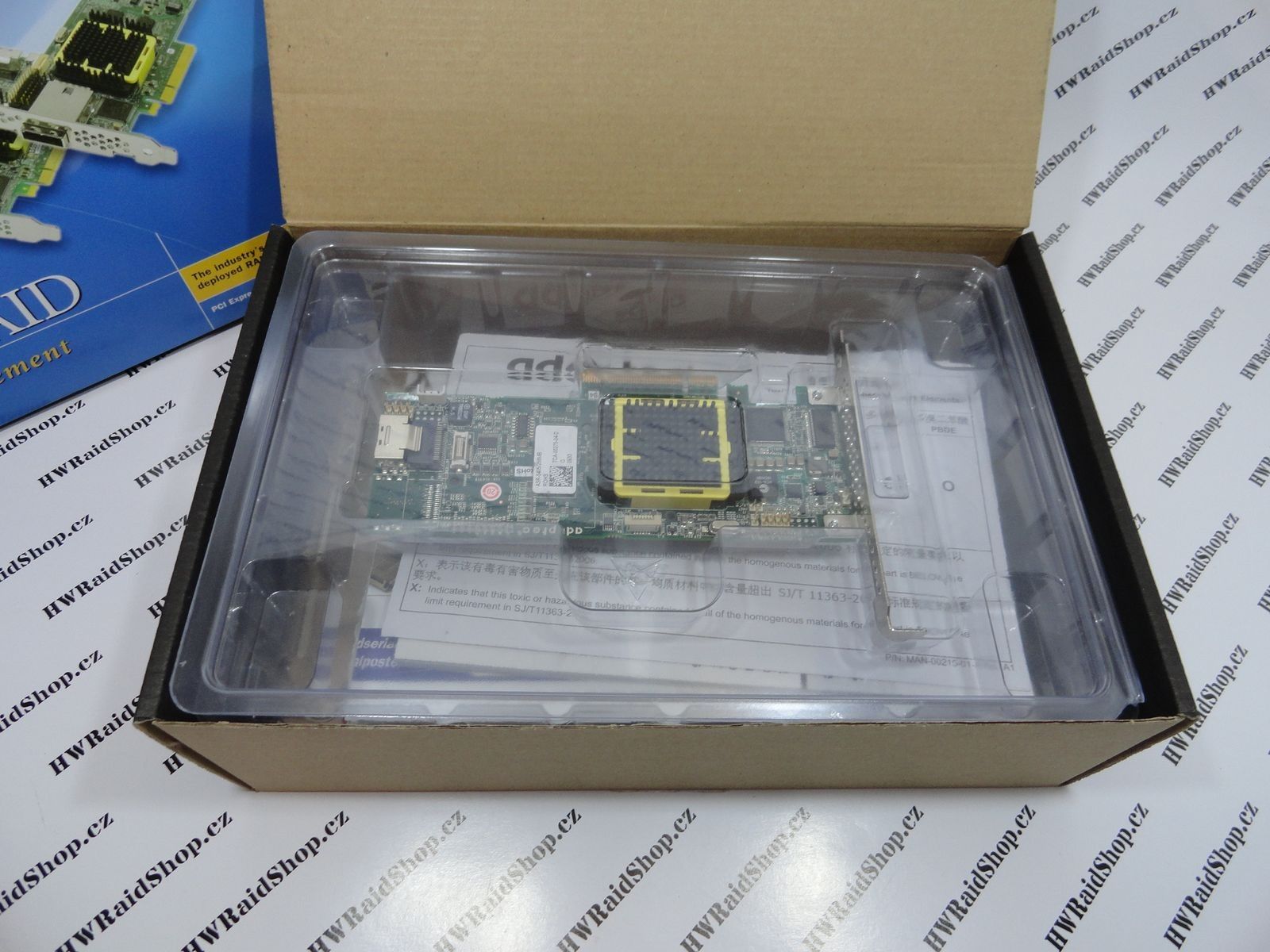

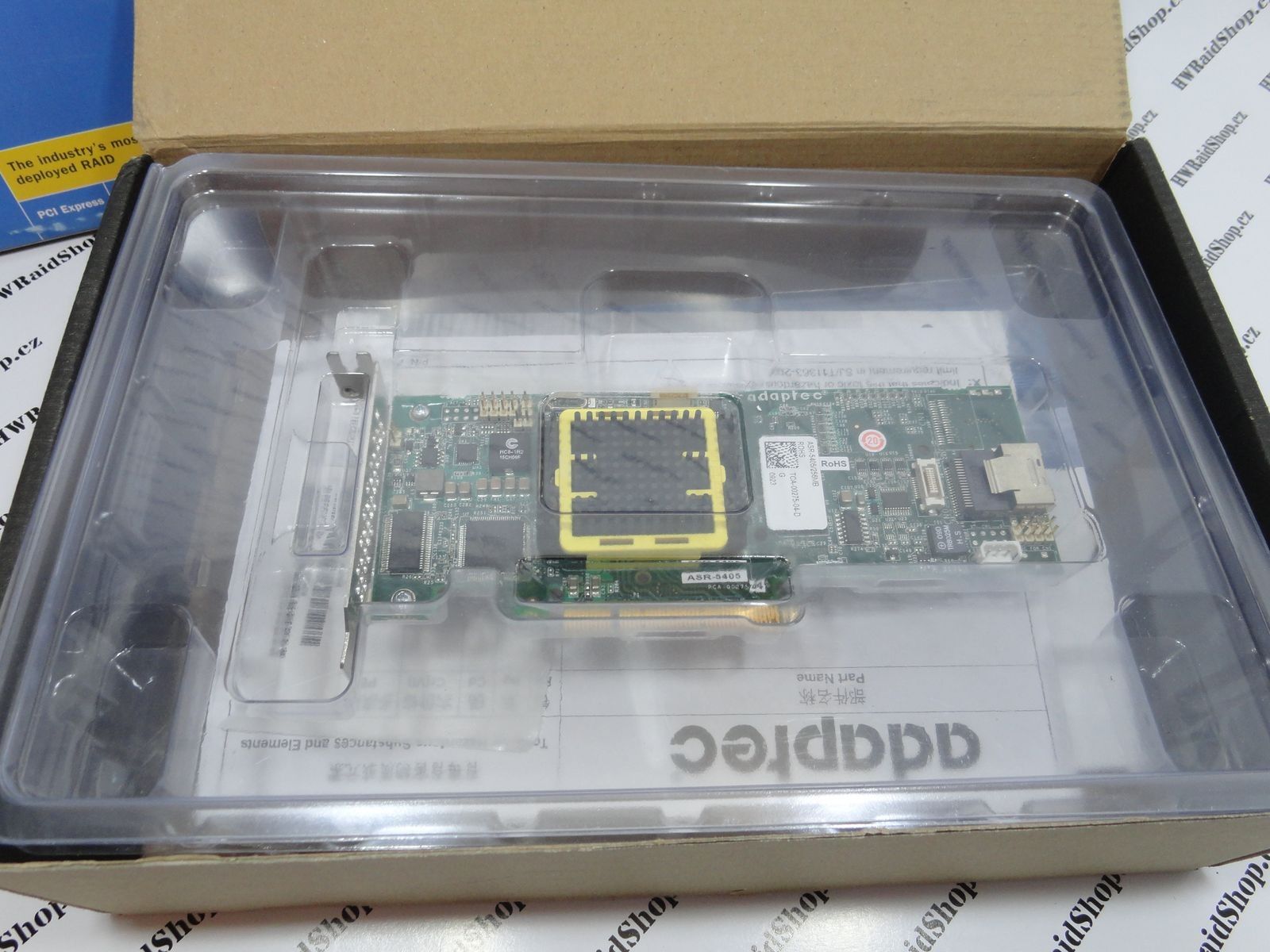

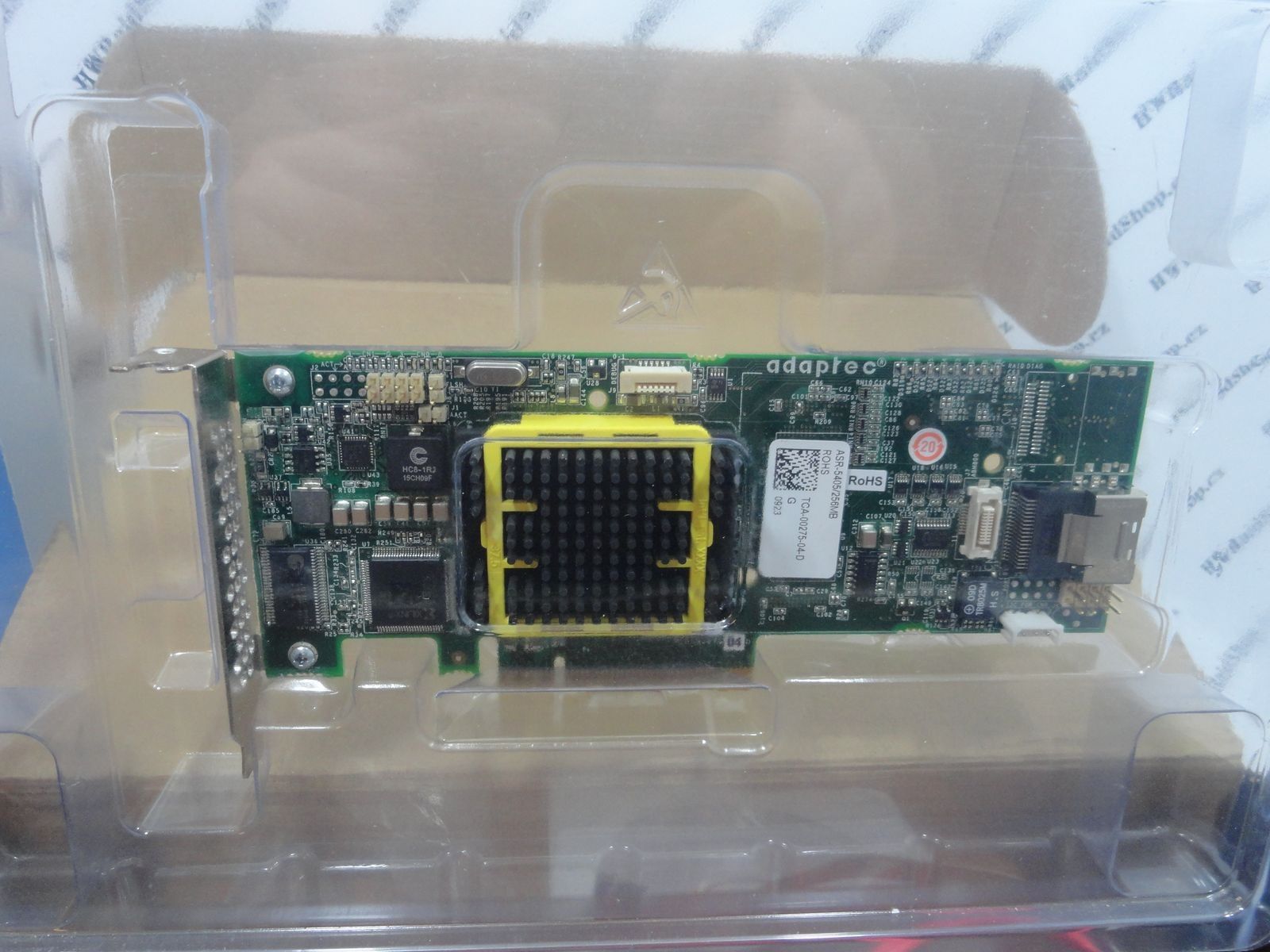

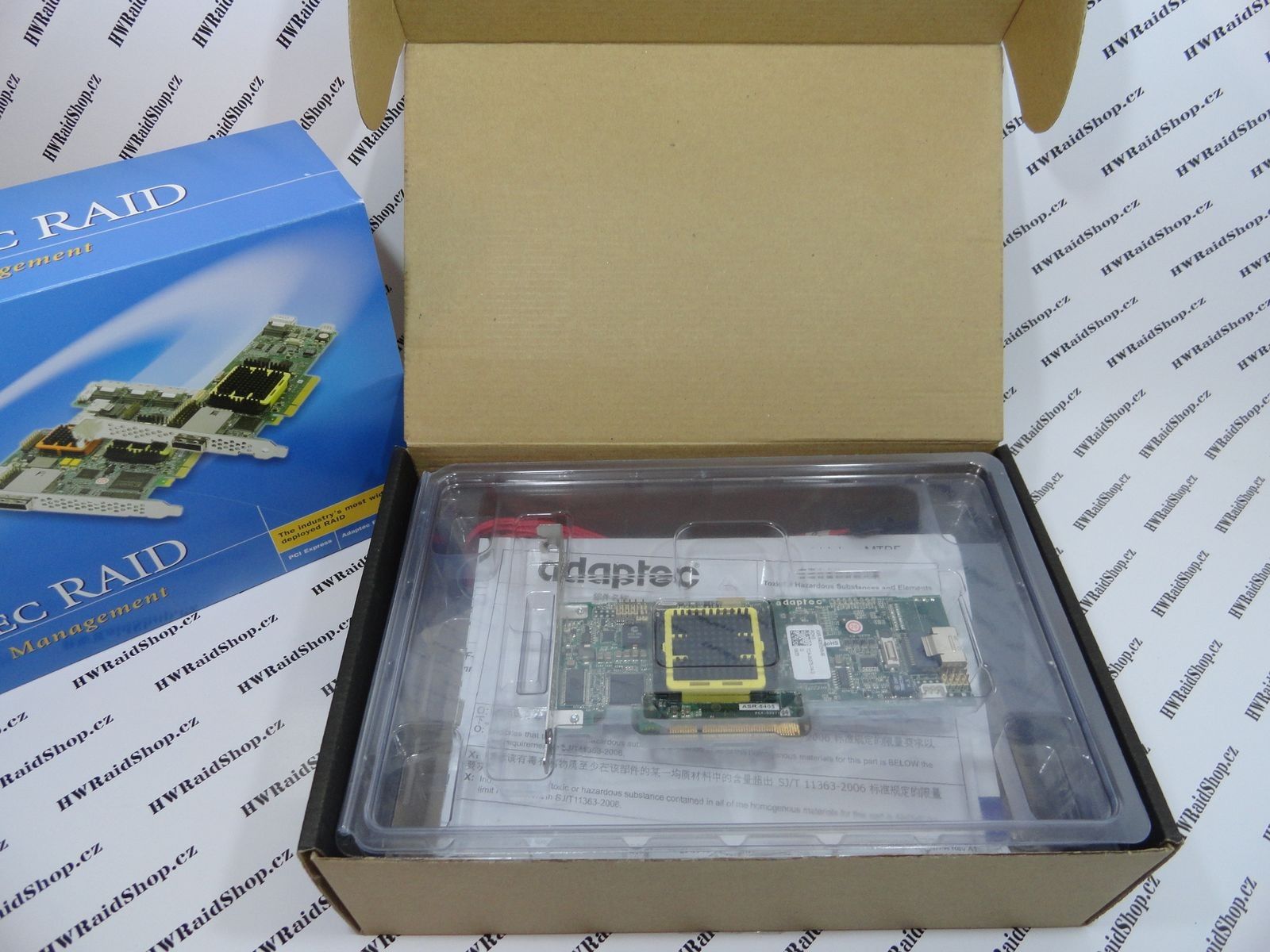

Raid řadič Adaptec RAID 5405 2258100-R
patří mezi kvalitní a výkonné SAS/SATA řadiče pevných disků s 256 MB paměti DDR2, 1.2 GHz dvoujádrovým ROC (RAID on Chip). Tento 4portový řadič, skládající se z 4 interních portů, plně podporuje disková pole RAID a je určen pro rozhraní PCI-Express x8.
Nabízí rozšířenou ochranu dat, maximální škálovatelnost a jednoduchou správu polí RAID typu 0, 1, 1E, 5, 5EE, 6, 10, 50 a 60, to vše managovatelné pomocí Intelligent Power Management a ASM prostřednictvím sítě s podporou protokolů SNMP a SMTP. Tento řadič nabízí kompletní podporu SAS (Serial Attached SCSI). Dále pak standard Serial ATA 3 Gb/s, který rovněž zahrnuje technologie jako "Native Command Queuing". Ta umožňuje řazení příchozích příkazů tak, aby je disk mohl provádět co nejefektivněji (tedy s minimálním přesunem hlav apod.). NCQ se projeví především při náhodném přístupu k disku, který bude v budoucnu stále častější.
Podporovány jsou operační systémy Windows, FreeBSD, Red Hat Linux, SUSE Linux, SCO OpenServer, UnixWare, Sun Solaris, VMware ESX.
Pomocí SAS expandéru lze připojit až 256 SATA nebo SAS zařízení.

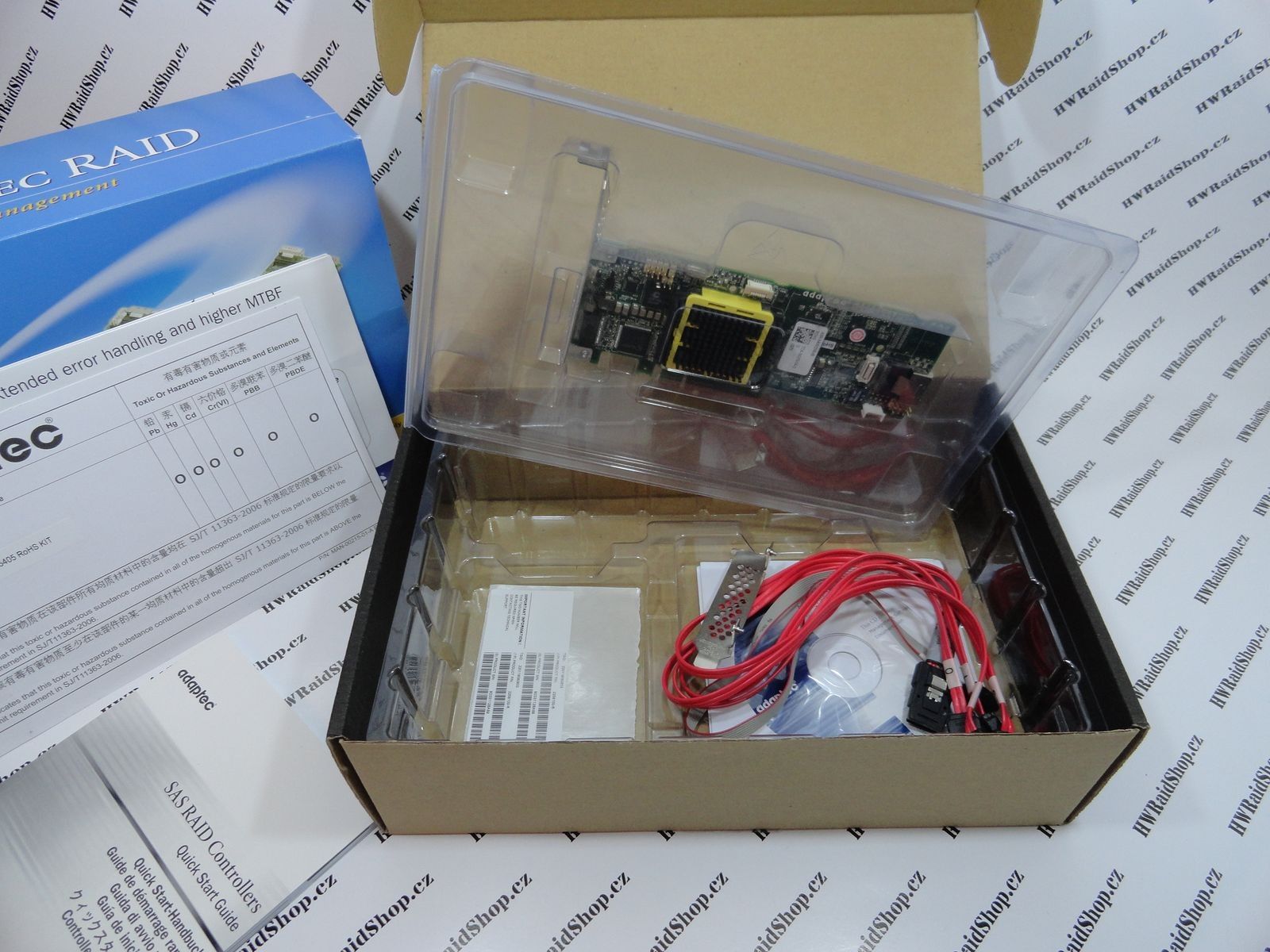

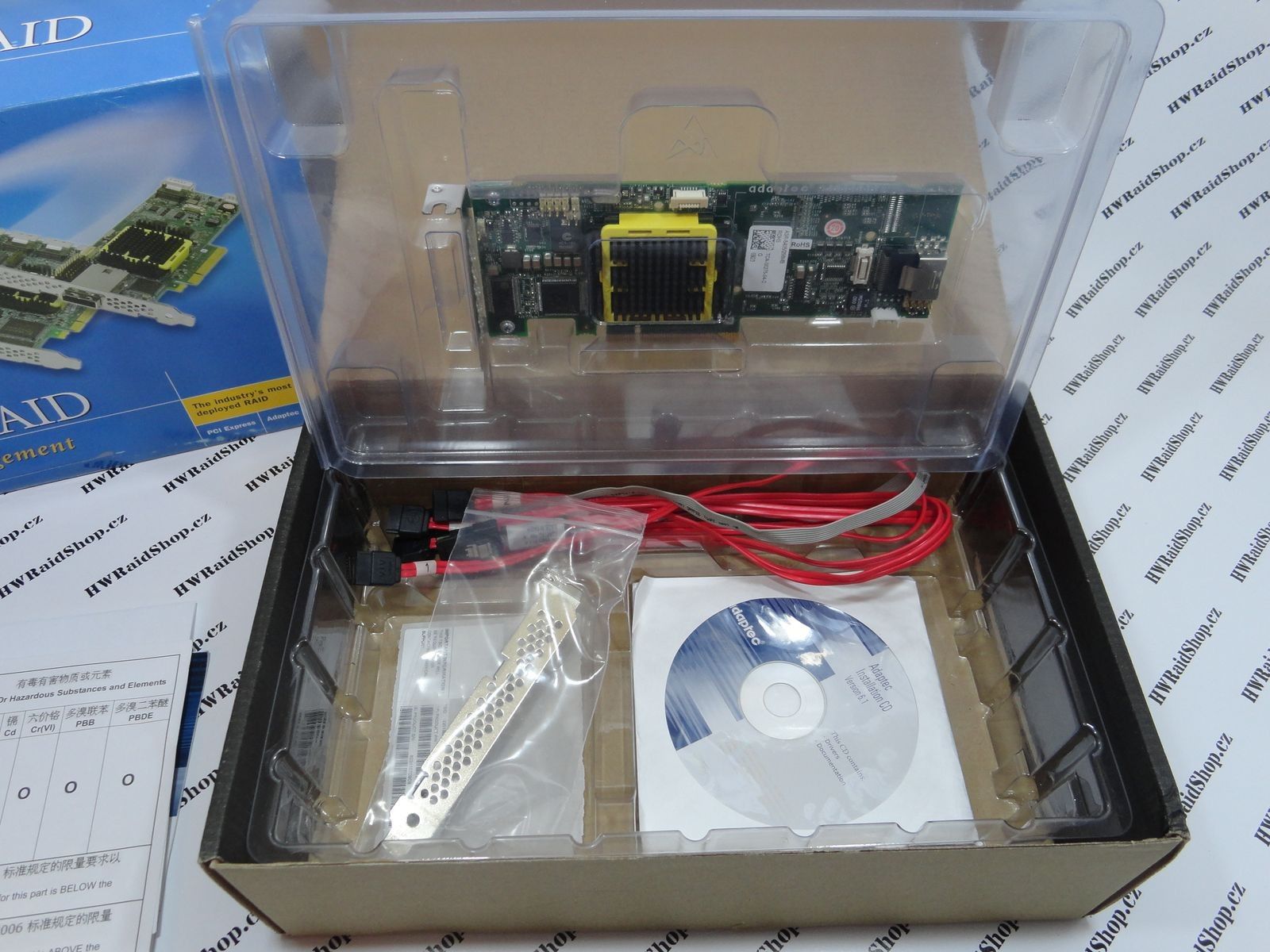

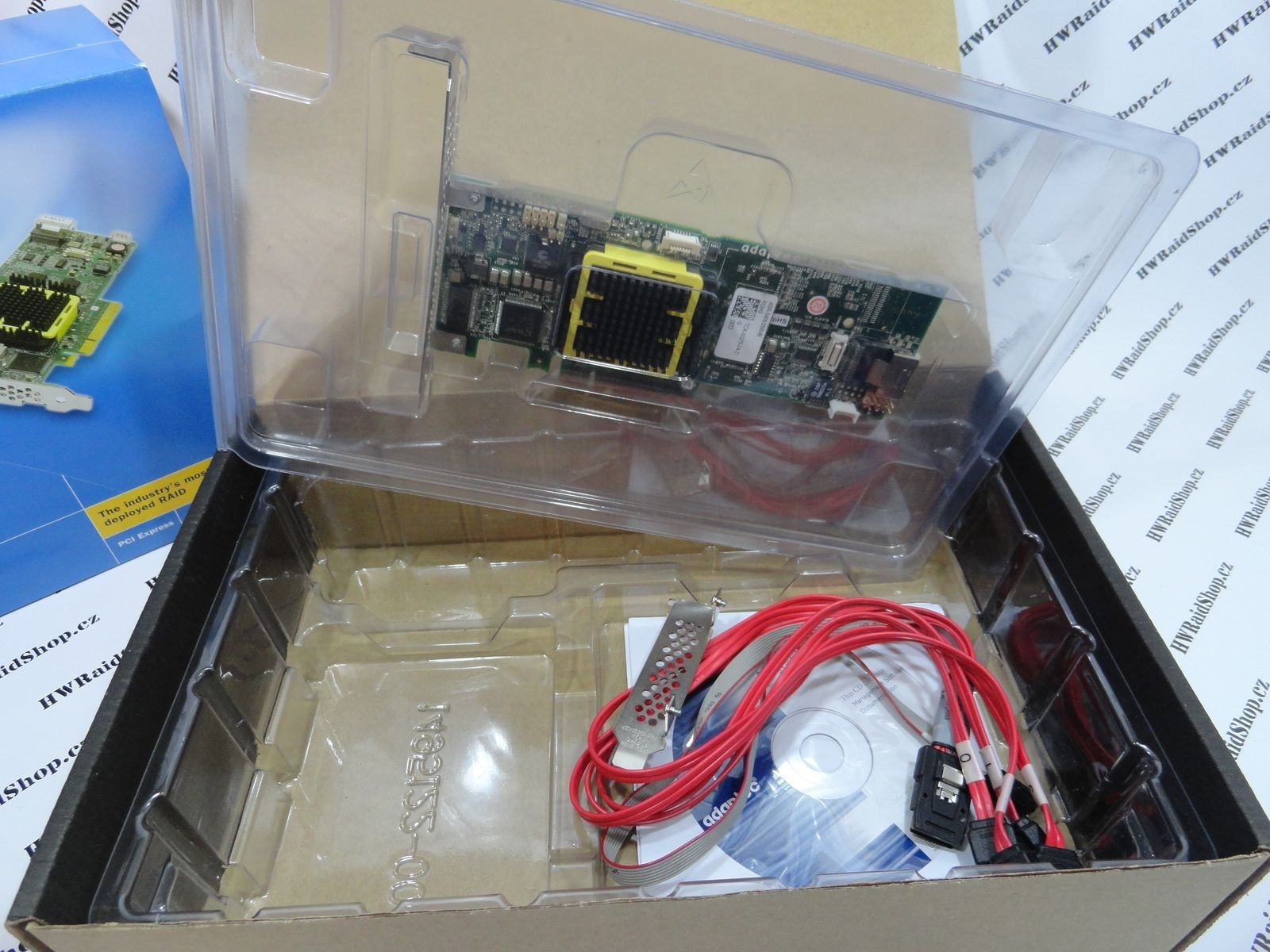

Dodává se včetně kabelu Mini SAS x4 na (4x) SATA o délce 0,5 m.
The Series 5 family of high-performance Adaptec SAS/SATA RAID adapters offers both high I/O transaction and high bandwidth processing for use with cost-effective, high-capacity SATA drives or high-performance SAS drives.
The Adaptec RAID Series 5 family utilizes industry-leading dual core RAID on Chip (ROC), 512MB of DDR2 write cache (ASR-5405 has 256 DDR2 memory), and connectivity with the latest x8 PCI-Express to deliver over 250,000 I/Os 1.2GBs. Using SAS expanders, it can connect up to 256 SATA/SAS devices.
The Adaptec RAID Series 5 family supports a broad range of operating systems, compatibility with more than 300 third-party devices, and full integration with Adaptec Storage Manager™ for centralized management of all Adaptec raid adapters on the network.
Intelligent Power Management - Reduce Power by up to 70%
The power required by disks is a primary ongoing storage cost. Full power is maintained to every disk whether it is actively being used or not, which also increases cooling costs. Adaptec Intelligent Power Management slashes power and cooling costs by spinning down idle disks and providing a lower power mode for active disks.
Featured Documents
Highlights
Models
- 5405: 4 (4 internal) ports
Form Factor
Low Profile MD2:
Series 5:
- 1.2GHz Dual Core RAID on Chip (ROC) processor
- 8-Lane PCI-Express bus interface
- 0, 1, 1E, 5, 5EE, 6, 10, 50, 60, JBOD RAID levels
- Supports up to 256 SAS/SATA drives
- Hybrid RAID 1 & 10: SSD + HDD for Maximum Performance and Reliability
- Intelligent Power Management – Reduces power and cooling costs by as much as 70%
Benefits
Performance SAS/SATA RAID adapter supports both SATA and SAS devices. Ideal for bandwidth intensive storage applications; NAS, OLTP servers, web servers, and digital surveillance.
Key Differentiators
- Hybrid RAID
- Intelligent Power Management
Customer Needs
High I/O transaction and high bandwidth processing.
Key RAID Features
- Supports up to 256 SATA or SAS devices using SAS expanders
- RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50 and 60
- Quick initialization
- Online Capacity Expansion
- Copyback Hot Spare
- Dynamic caching algorithm
- Native Command Queuing (NCQ)
- Background initialization
- Hot-plug drive support
- RAID Level Migration
- Hot spares – global, dedicated, and pooled
- Automatic/manual rebuild of hot spares
- SAF-TE enclosure management
- Configurable stripe size
- S.M.A.R.T. support
- Up to 512TB array sizes
- Multiple arrays per disk drive
- Bad stripe table
- Dynamic sector repair
- Staggered drive spin-up
- Bootable array support
- Optimized Disk Utilization
Management Utilities
Adaptec Storage Manager™ (ASM)
- Java-based GUI Management Utility
- Remote configuration, monitoring & notification
- ASM OS Support: Windows, Linux, SCO, Solaris, FreeBSD
- Microsoft VDS Support
- SNMP, SMTP
- Remote firmware updates
ARCCONF
- Command Line Interface
- SMI-S support for VMware
Adaptec BIOS Configuration Utility (ACU)
- BIOS level configuration utility
- Flashable BIOS support
Data Transfer Rate
Bus System Interface
Form Factor
Cache Memory
Connector Configuration
- 5405: 1 internal (SFF-8087) Mini SAS
Operating System
- Microsoft Windows
- Red Hat Linux
- SUSE Linux
- SCO OpenServer
- UnixWare
- Sun Solaris
- FreeBSD
- VMware ESX
