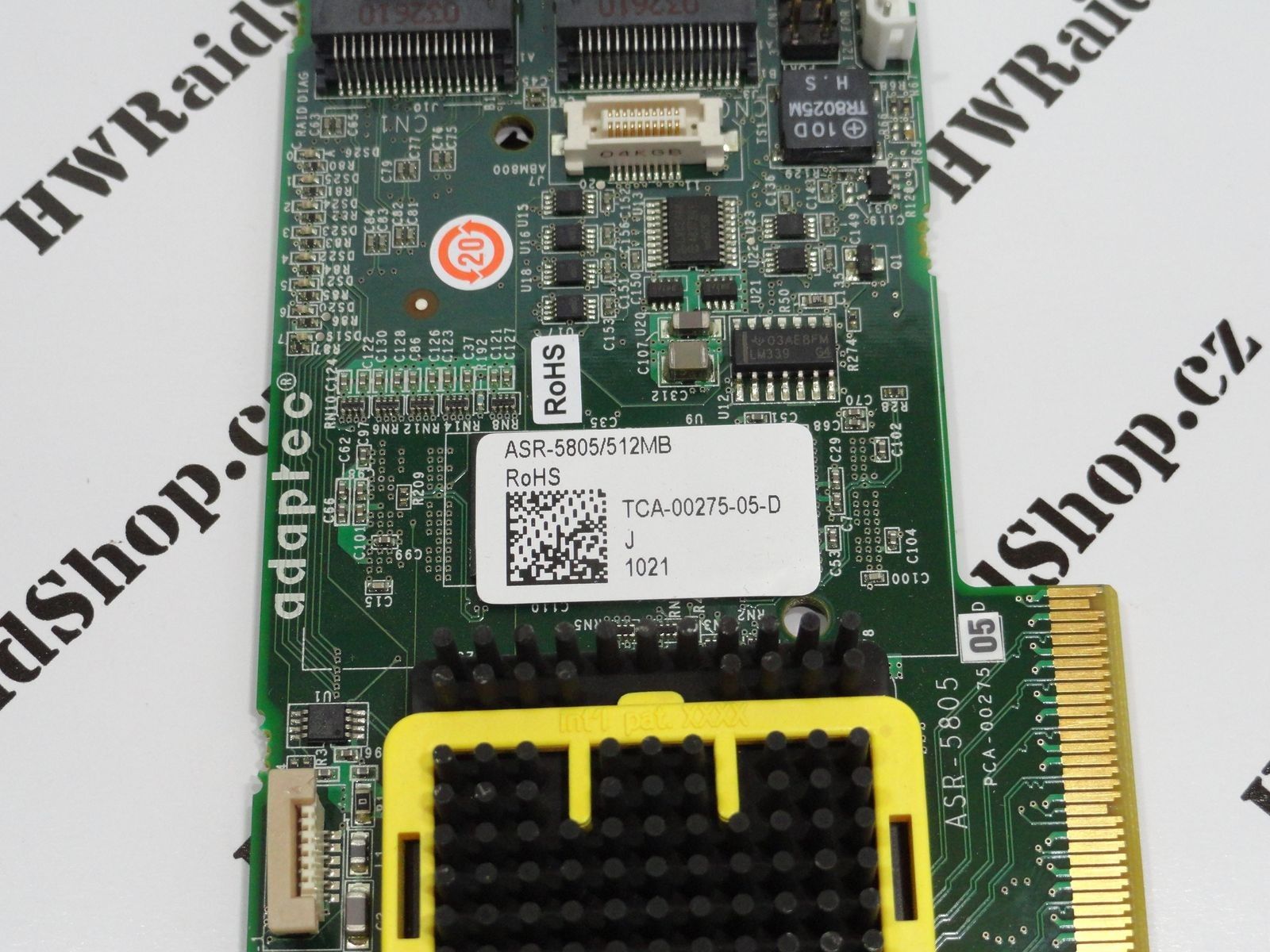

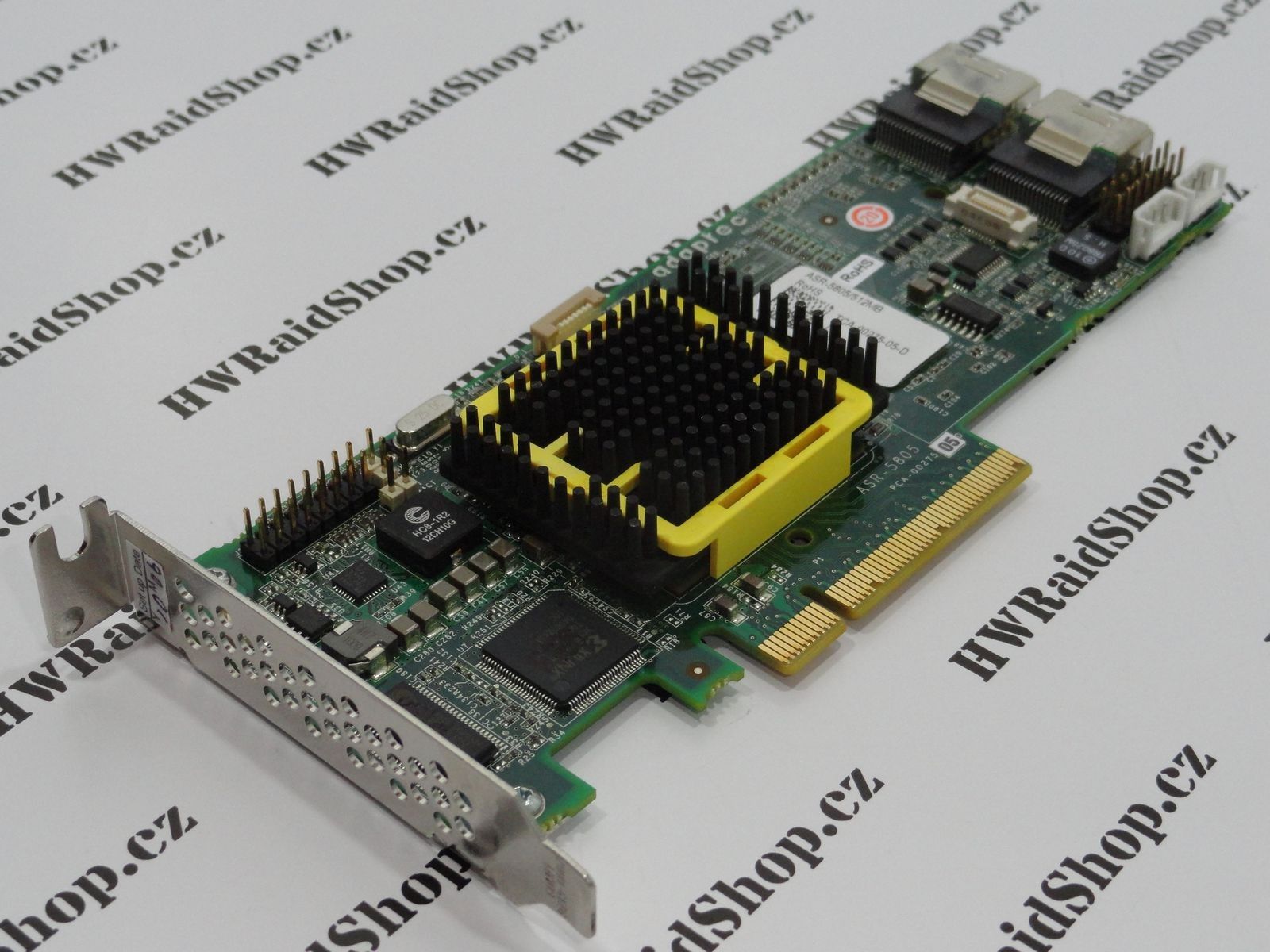

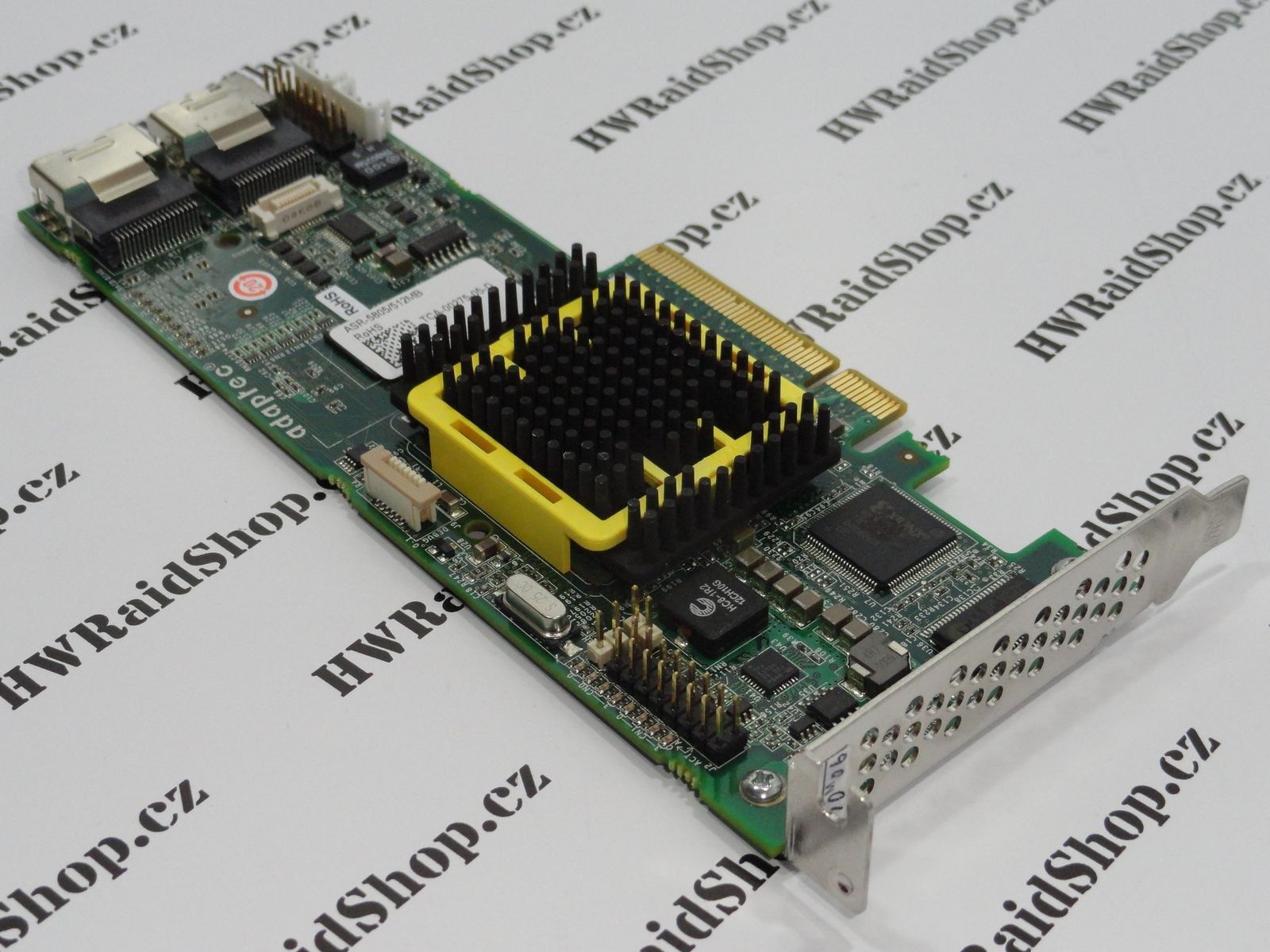

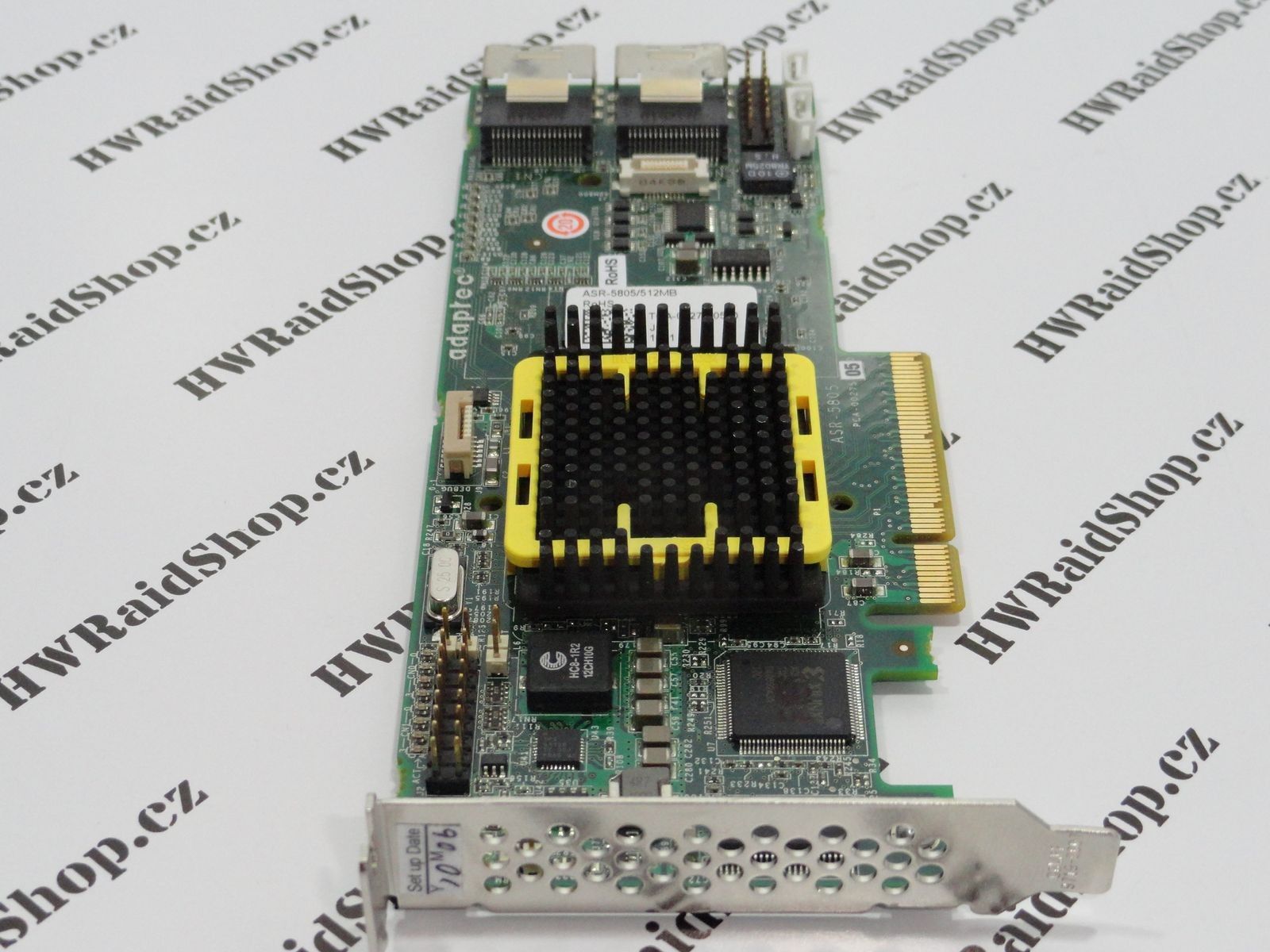

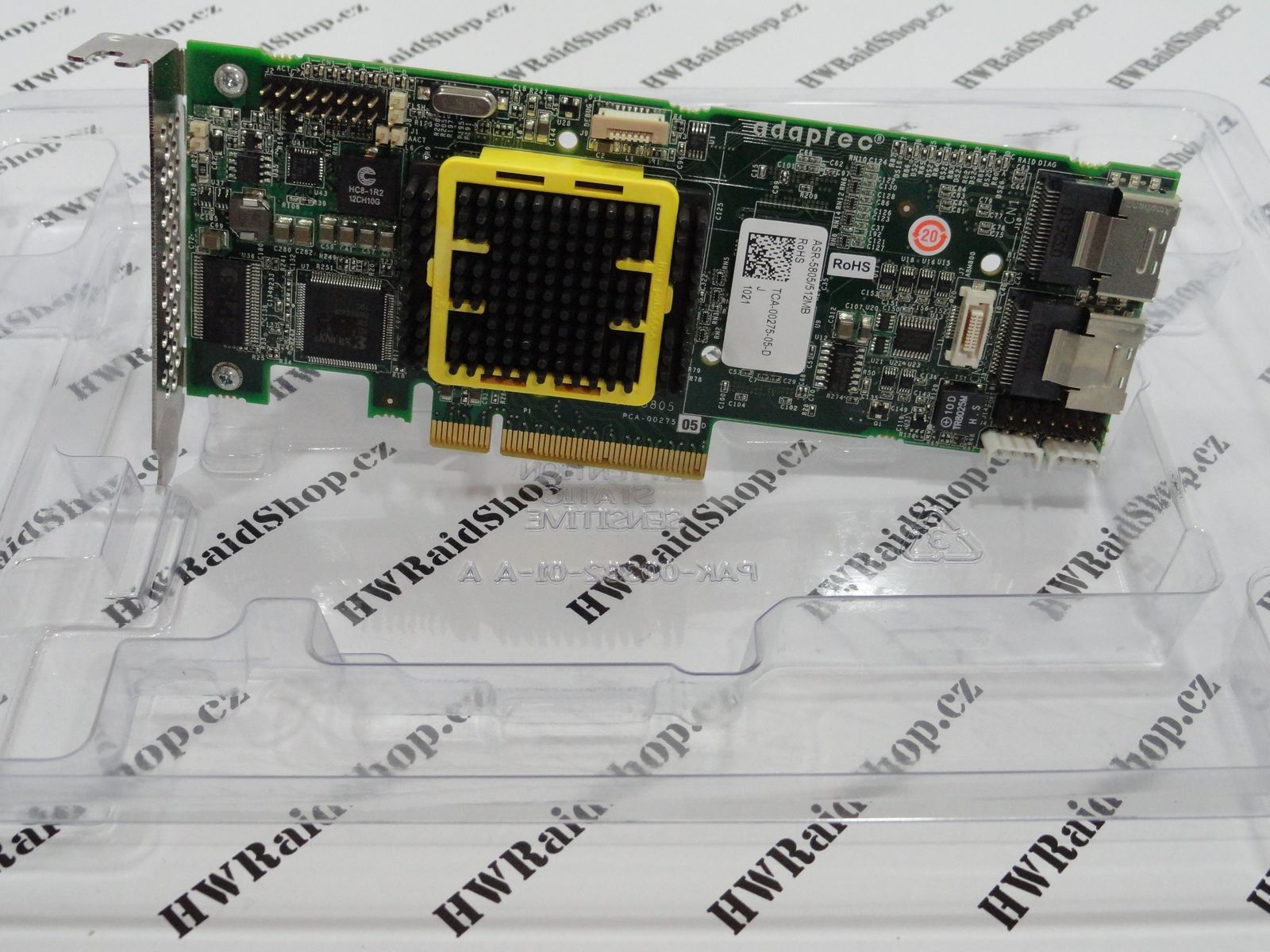

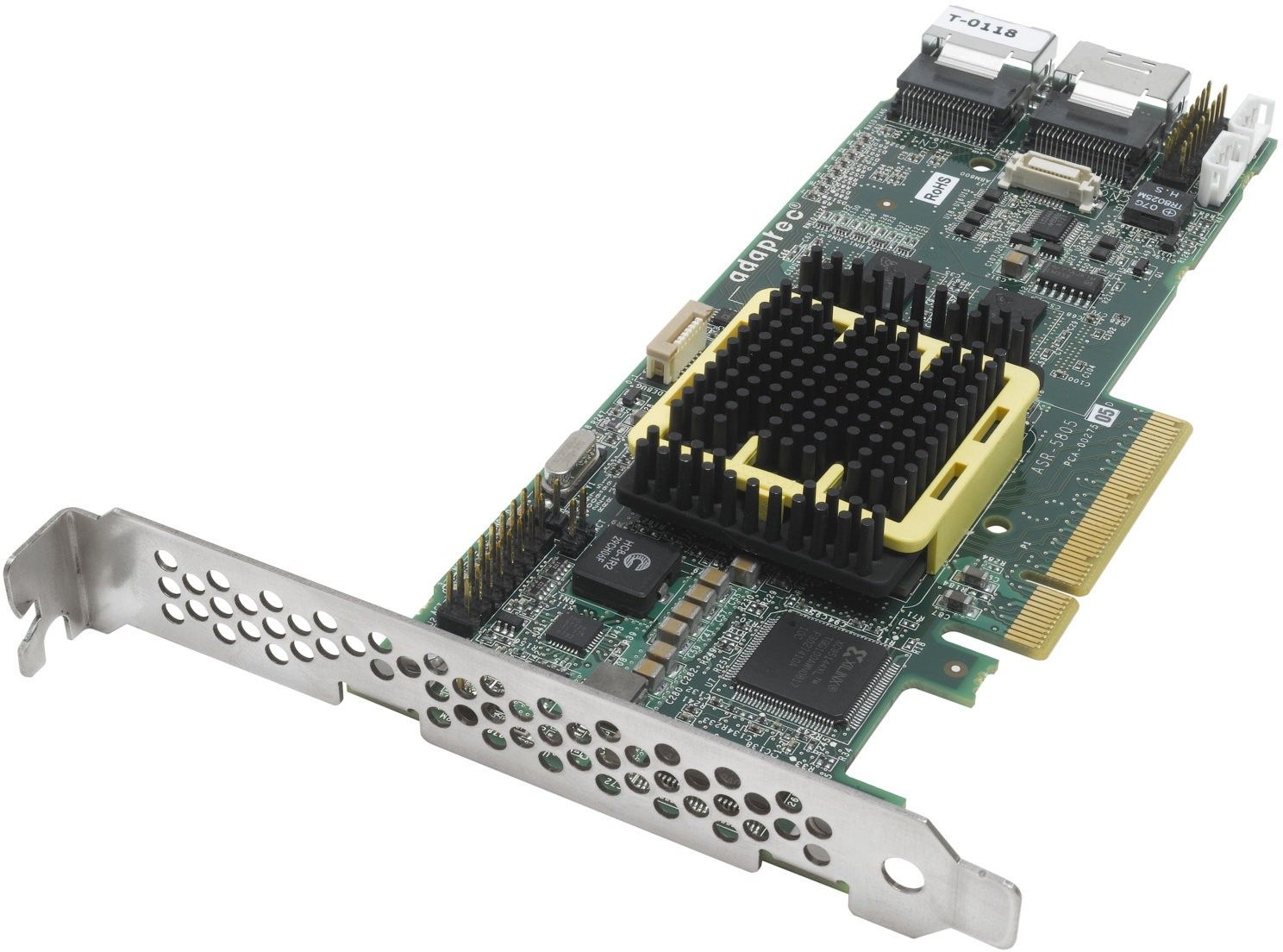

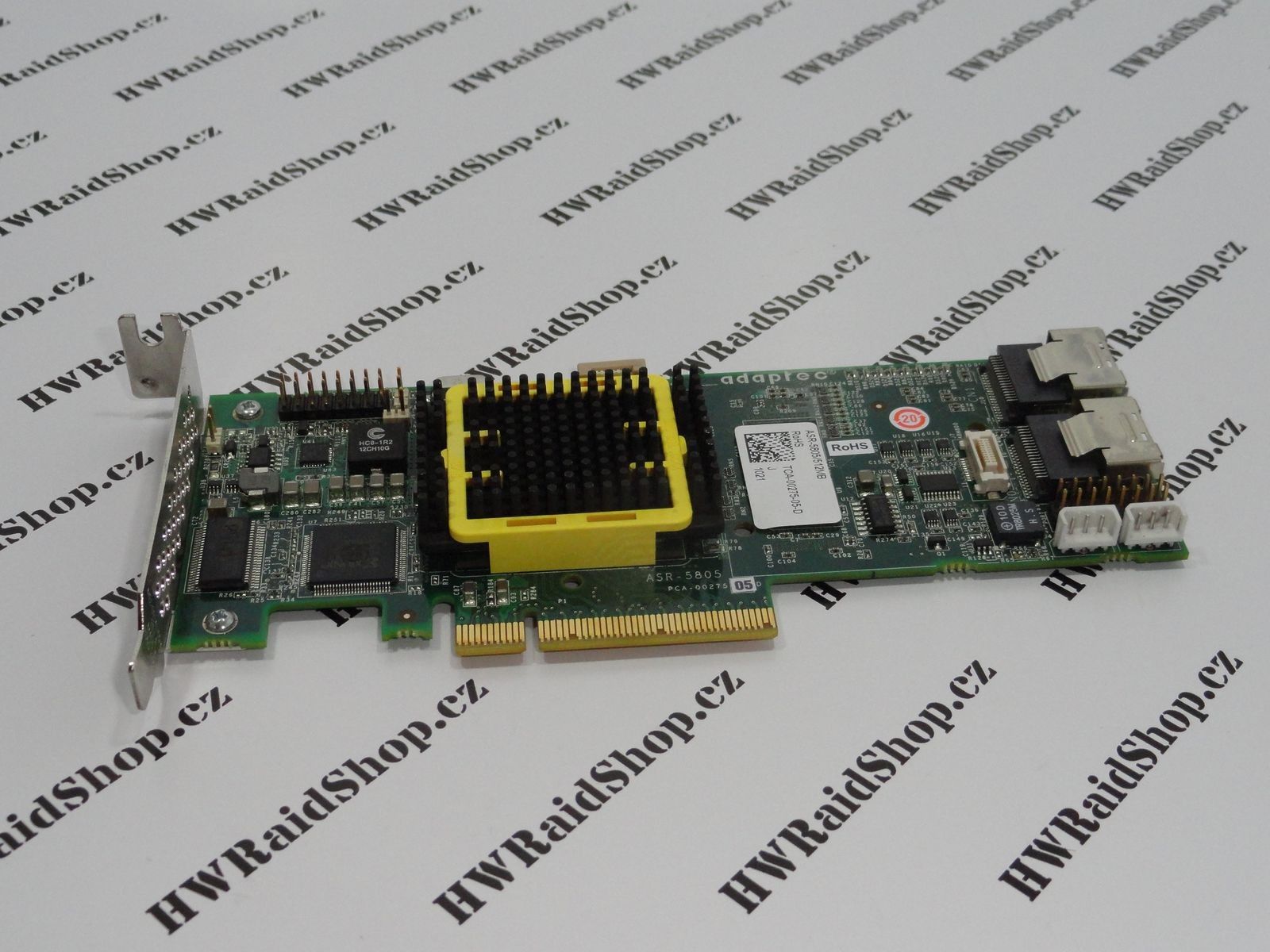

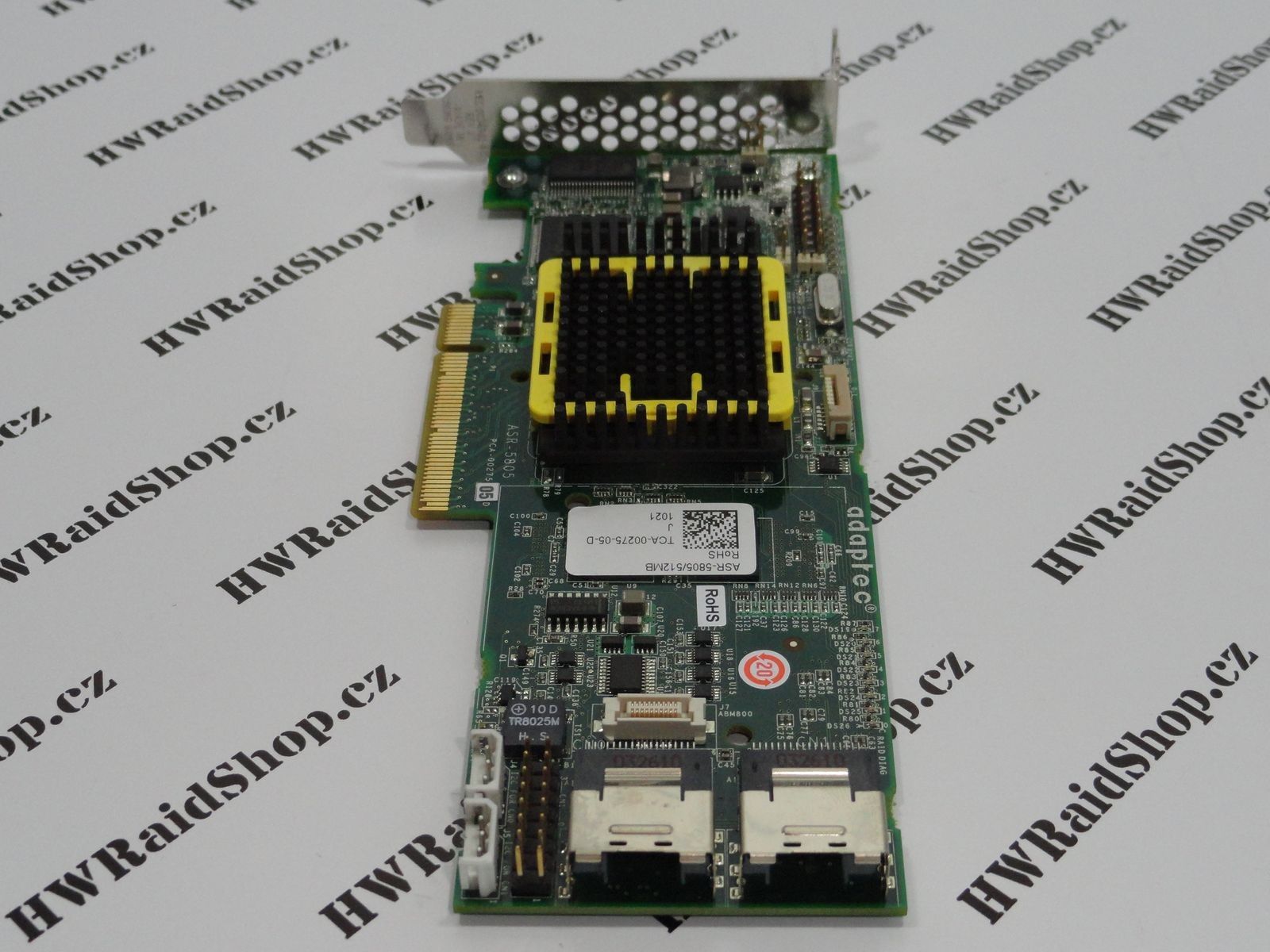

Adaptec RAID 5805 Single 2244300-R

Adaptec RAID 5805 Single 2244300-R patří mezi kvalitní SAS/SATA řadiče pevných disků s 512 MB paměti DDR2, 1.2 GHz dvoujádrovým ROC (RAID on Chip). Tento 8portový řadič plně podporuje disková pole RAID a je určen pro rozhraní PCI-Express x8.

Nabízí pokročilou ochranu dat, maximální škálovatelnost a jednoduchou správu polí RAID typu 0, 1, 1E, 5, 5EE, 6, 10, 50 a 60, to vše managovatelné pomocí Intelligent Power Management a ASM prostřednictvím sítě s podporou protokolů SNMP a SMTP. Tento řadič nabízí kompletní podporu SAS (Serial Attached SCSI). Dále pak standard Serial ATA 3 Gb/s, který rovněž zahrnuje technologie jako "Native Command Queuing". Ta umožňuje řazení příchozích příkazů tak, aby je disk mohl provádět co nejefektivněji (tedy s minimálním přesunem hlav apod.). NCQ se projeví především při náhodném přístupu k disku, který bude v budoucnu stále častější.

Podporovány jsou operační systémy: Windows, FreeBSD, Red Hat Linux, SUSE Linux, SCO OpenServer, UnixWare, Sun Solaris, VMware ESX.

Pomocí SAS expandéru lze připojit až 256 SATA nebo SAS zařízení.

Update firmware na nejnovější verzi !! podpora 3TB, 4 TB a větších disků, odzkoušeno i s 8TB disky Seagate Archive 8000GB ST8000AS0002

The Series 5 family of high-performance Adaptec SAS/SATA RAID adapters offers both high I/O transaction and high bandwidth processing for use with cost-effective, high-capacity SATA drives or high-performance SAS drives.

The Adaptec RAID Series 5 family utilizes industry-leading dual core RAID on Chip (ROC), 512MB of DDR2 write cache (ASR-5405 has 256 DDR2 memory), and connectivity with the latest x8 PCI-Express to deliver over 250,000 I/Os 1.2GBs. Using SAS expanders, it can connect up to 256 SATA/SAS devices.

The Adaptec RAID Series 5 family supports a broad range of operating systems, compatibility with more than 300 third-party devices, and full integration with Adaptec Storage Manager™ for centralized management of all Adaptec raid adapters on the network.

Intelligent Power Management - Reduce Power by up to 70%
The power required by disks is a primary ongoing storage cost. Full power is maintained to every disk whether it is actively being used or not, which also increases cooling costs. Adaptec Intelligent Power Management slashes power and cooling costs by spinning down idle disks and providing a lower power mode for active disks.

Benefits

Performance SAS/SATA RAID adapter supports both SATA and SAS devices. Ideal for bandwidth intensive storage applications; NAS, OLTP servers, web servers, and digital surveillance.

Key Differentiators

• Hybrid RAID
• Intelligent Power Management

Customer Needs

High I/O transaction and high bandwidth processing.

Key RAID Features

• Supports up to 256 SATA or SAS devices using SAS expanders
• RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50 and 60
• Quick initialization
• Online Capacity Expansion
• Copyback Hot Spare
• Dynamic caching algorithm
• Native Command Queuing (NCQ)
• Background initialization
• Hot-plug drive support
• RAID Level Migration
• Hot spares – global, dedicated, and pooled
• Automatic/manual rebuild of hot spares
• SAF-TE enclosure management
• Configurable stripe size
• S.M.A.R.T. support
• Up to 512TB array sizes
• Multiple arrays per disk drive
• Bad stripe table
• Dynamic sector repair
• Staggered drive spin-up
• Bootable array support
• Optimized Disk Utilization

Management Utilities Adaptec Storage Manager™ (ASM)

• Java-based GUI Management Utility
• Remote configuration, monitoring & notification
• ASM OS Support: Windows, Linux, SCO, Solaris, FreeBSD
• Microsoft VDS Support
• SNMP, SMTP
• Remote firmware updates

ARCCONF

• Command Line Interface
• SMI-S support for VMware

Adaptec BIOS Configuration Utility (ACU)

• BIOS level configuration utility
• Flashable BIOS support

Data Transfer Rate

3 Gb/s per port

Bus System Interface

8-lane PCIe

Form Factor

• 5805: MD2-Low Profile

Cache Memory

512MB of DDR2 memory

Connector Configuration

• 5805: 2 internal (SFF-8087) Mini SAS

Operating System

• Microsoft Windows
• Red Hat Linux
• SUSE Linux
• SCO OpenServer
• UnixWare
• Sun Solaris
• FreeBSD
• VMware ESX

For a detailed list (52445 | 51645 | 51245) see ASK Answer ID 15317.

For a detailed list (5405 | 5445 | 5805) see ASK Answer ID 15316.

Package Contents

Model 5805

• Adaptec RAID 5805 adapter
• Additional low profile vented bracket
• Cables: Two internal Mini SAS x4 to (4x) SATA fanout cables w/ sideband

Also included with each adapter:

• Quick Installation Guide (English/French/German/Italian/ Japanese/Spanish)
• Software and documentation DVD

*Single does not include cables

Physical Size

• 5805: 2.5" H x 6.6" L (64mm x 167mm)

Operating Temperature

0°C to 55°C* (with 200 LFM airflow)

0°C to 40°C* (with 200 LFM airflow; with battery)

Note: This Adaptec card contains a powerful RAID processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM).

* Ambient temperature measured 1" away from the RAID processor

Operating Voltage

5805/5445:

0.45A @ 3.3VDC

1.0A @ 12VDC

Regulatory Certification

CE, FCC, UL, C-tick, VCCI

Environmental Compliance

RoHS

Mean Time Before Failure (MTBF) 873,403 hours at 40 degree C
