víceAdaptec HBA 7805H Single 2280800-R
Adaptec HBA 7805H Single 2280800-R
Zboží je nové - pouze otestované 100% funkční
- 2 x SFF-8643 mini-SAS HD Internal Connectors
- Up to 6Gb/s
- PCI-Express 3.0 x8
| Výrobce: | Adaptec |
| Kód: | 2280800-R |
| Dostupnost: | Prodáno |
| Počet ks: | 0 ks |
6 500,- Kč4 790,- Kč

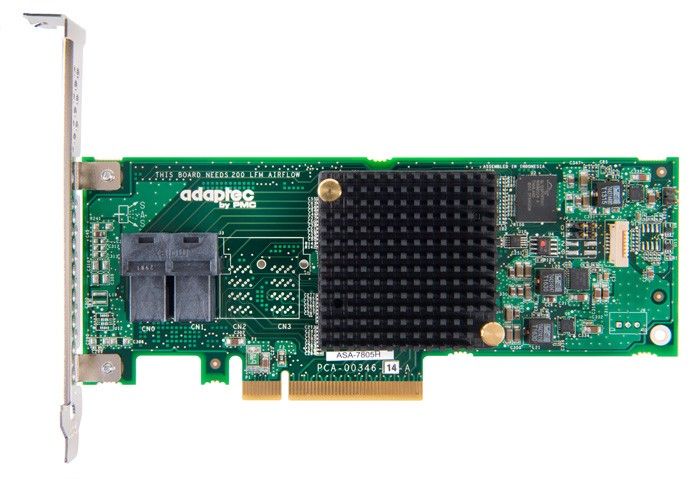

Adaptec HBA 7805H Single 2280800-R
Adaptec HBA 7805H Single 2280800-R
| Operating System | |
| Microsoft Windows Red Hat Linux SUSE Linux Ubuntu Linux VMware ESX For a detailed list see ASK Answer ID 17283. |
|
| Benefits | |
| Highest performing I/O solution supporting SAS and SATA HDDs, SSDs, removable media, SAS tape drives. |
|
| Customer Needs | |
| I/O connectivity offering highest bandwidth, lowest latency and highest I/O performance paired with broad compatibility, support for SAS expanders, and enclosure management; flexibility to install SAS and SATA drives. | |
| Key Features | |
| • Eight 6Gb/s ports • PMC PM8018 SAS protocol controller supports SAS and SATA HDDs, SSDs and SAS tape drives • PCIe Gen 3 x8 host interface • Low-profile MD2 form factor • Support for SAS expanders • Enclosure management support via LED header and SES2/SGPIO • Up to 800,000 IOPS at 4 KB block size, UP to 1 million IOPS at 512 Byte block size • Up to 6600 MB/s sequential throughput (64KB blocks) |
|
| Management Utilities | |
Adaptec BIOS Configuration Utility (CTRL + A) • Legacy configuration utility • Flashable BIOS support Adaptec uEFI BIOS Configuration Utility • HII based configuration utility • Flashable BIOS support |
|
| Data Transfer Rate | |
| 6 Gb/s per port | |
| Bus System Interface | |
| 8-lane PCIe Gen3 | |
| Form Factor | |
| MD2- Low Profile | |
| Connector Configuration | |
| 2 internal mini SAS HD (SFF-8643) | |
| Package Contents | |

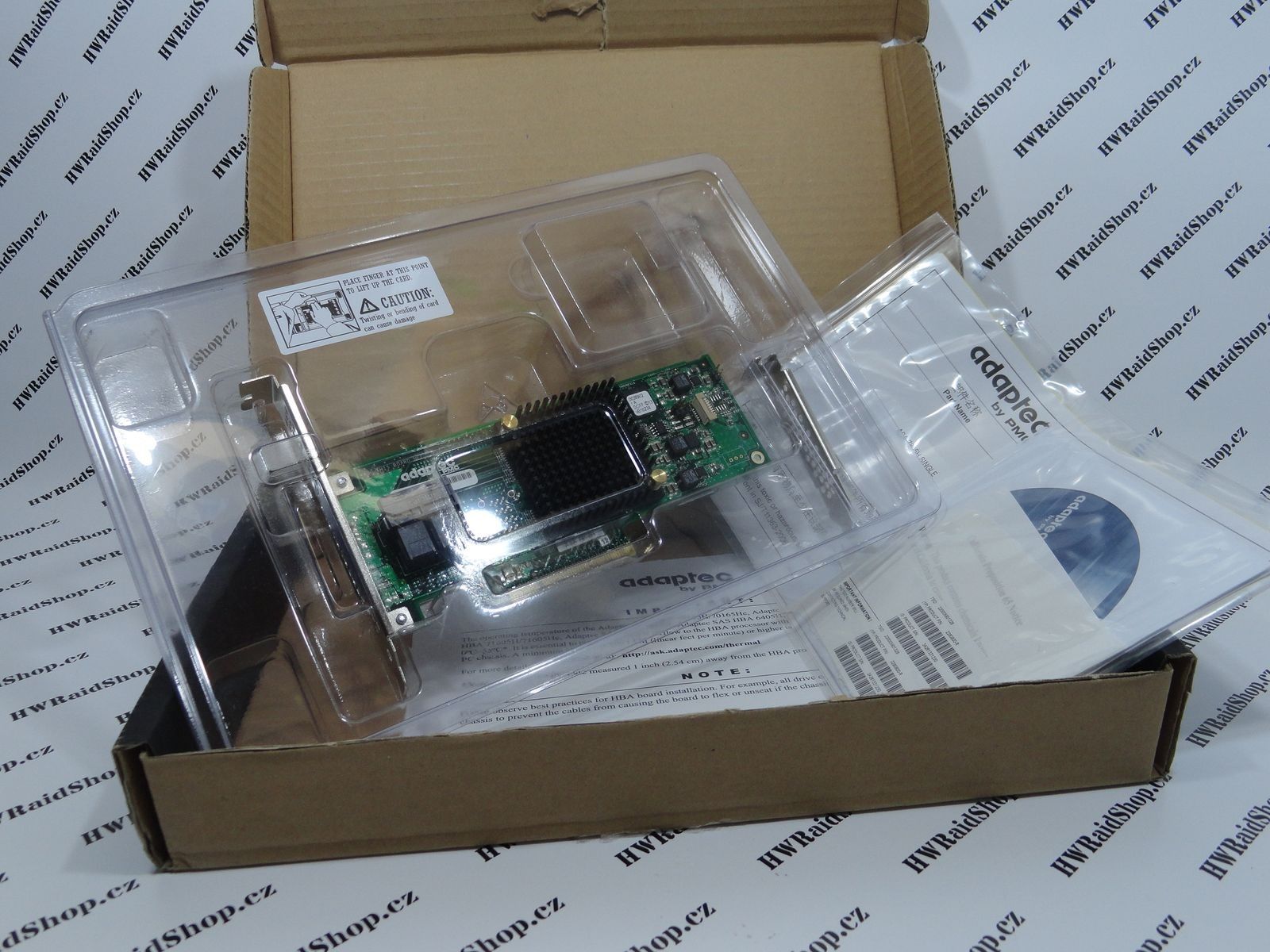

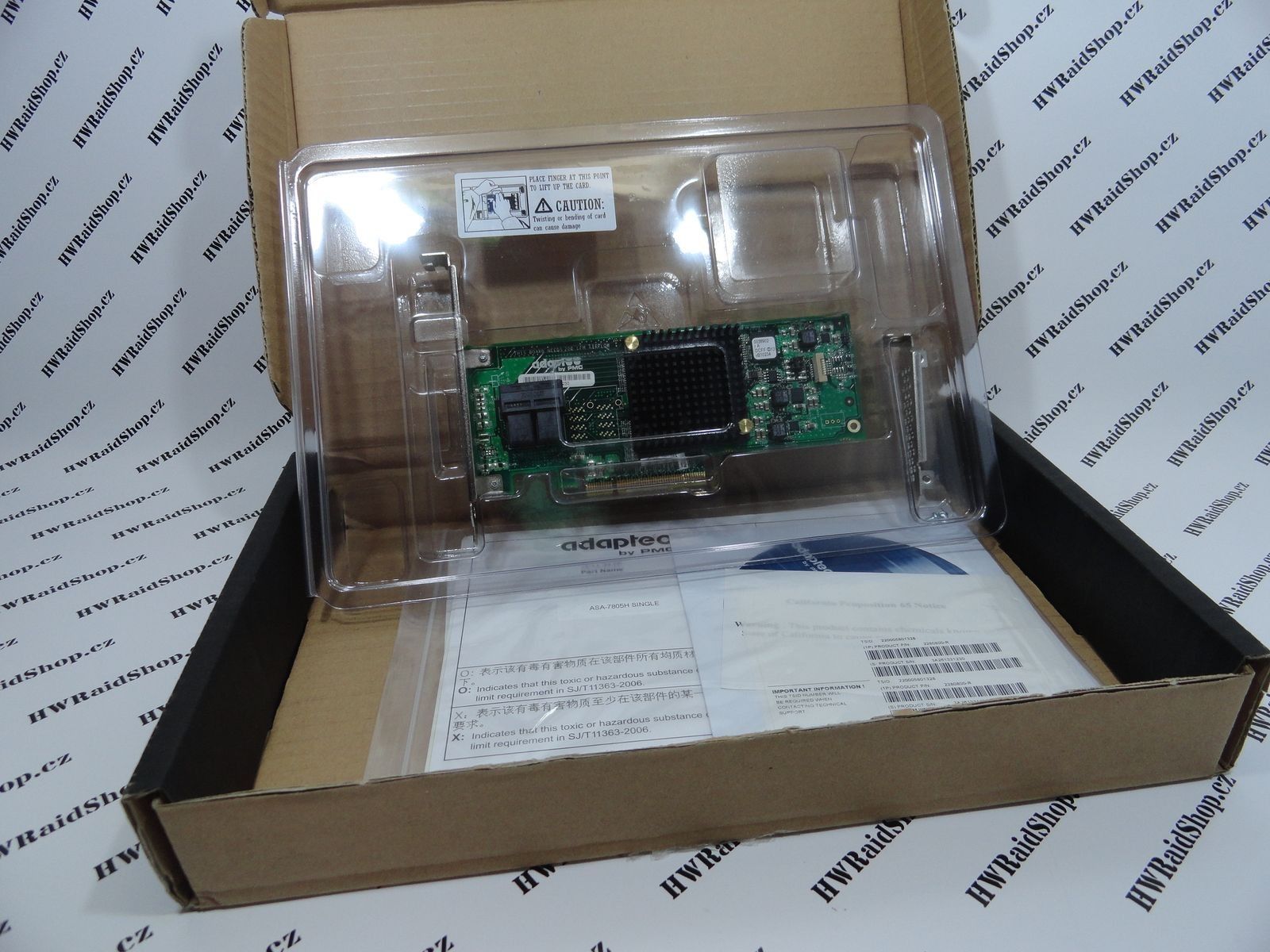

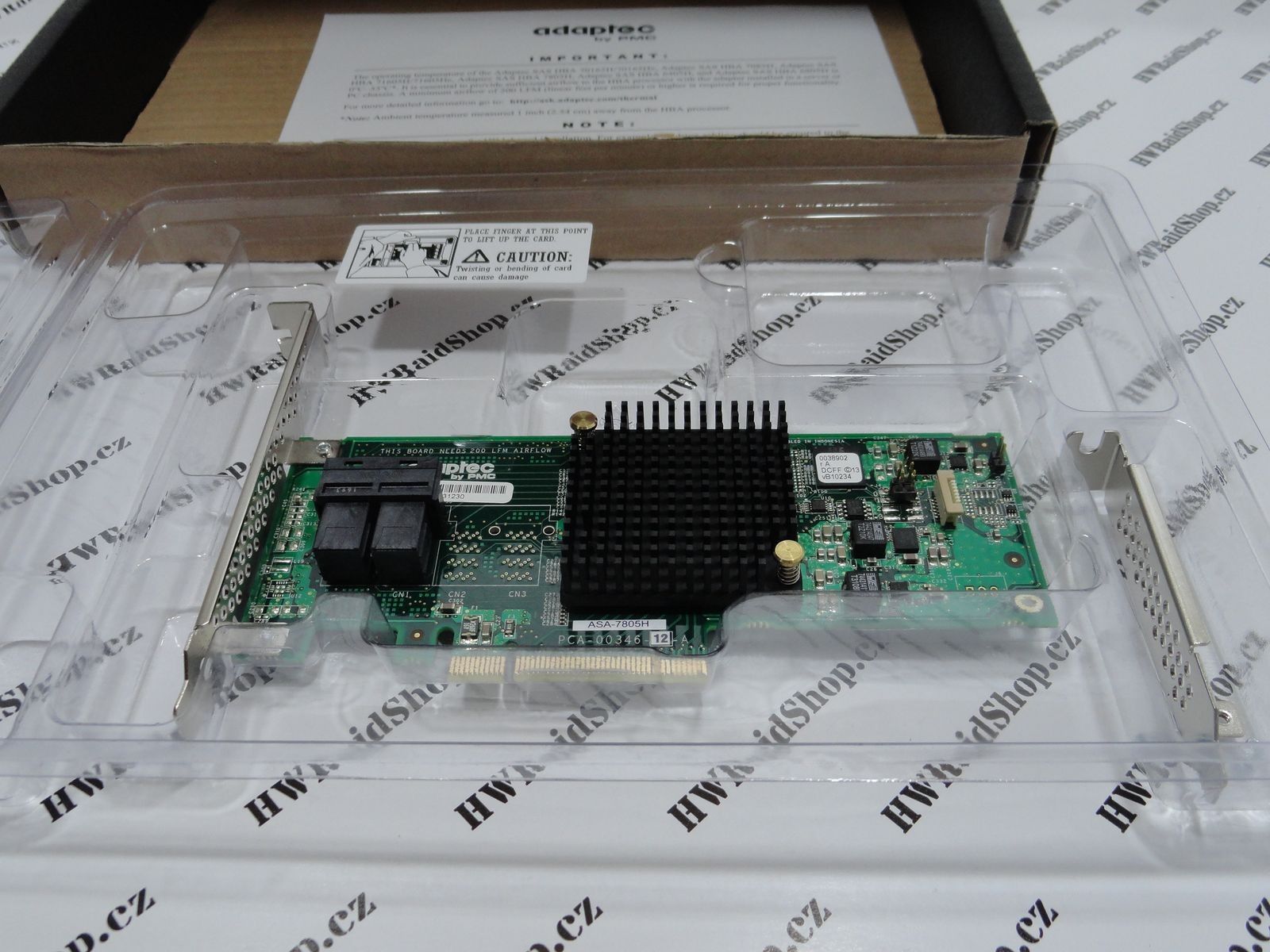

| • Adaptec 7805H adapter • Additional low profile vented bracket • Adaptec Installation DVD ( incl. documentation, drivers & software) *Single does not include cables |
|
| Physical Size | |
| 2.535"H x 6.6"L (64mm x 167mm) | |
| Operating Temperature | |
| 0°C to 55°C (with 200 LFM airflow) Note: This Adaptec card contains a powerful processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM). * Ambient temperature measured 1" away from the processor | |
| Operating Voltage | |
| 0.17A@ 3.3V 1.25A@ 12.0V | |
| Regulatory Certification | |
| CE, FCC, C-tick, VCCI, CNS, KCC, UL, BSMI | |
| Mean Time Before Failure (MTBF) | |
| 1,000,000 hours at 40°C | |
| Celkový počet portu: | 8 |
| Počet internich portu: | 8 |
| Typ konektoru: | mini SAS HD SFF-8643 interní |
| Připojeni k PC: | PCI-Express x8 |
| Battery Backup Unit: | ne |
