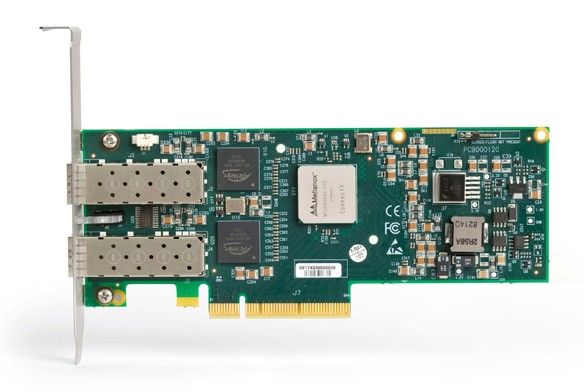

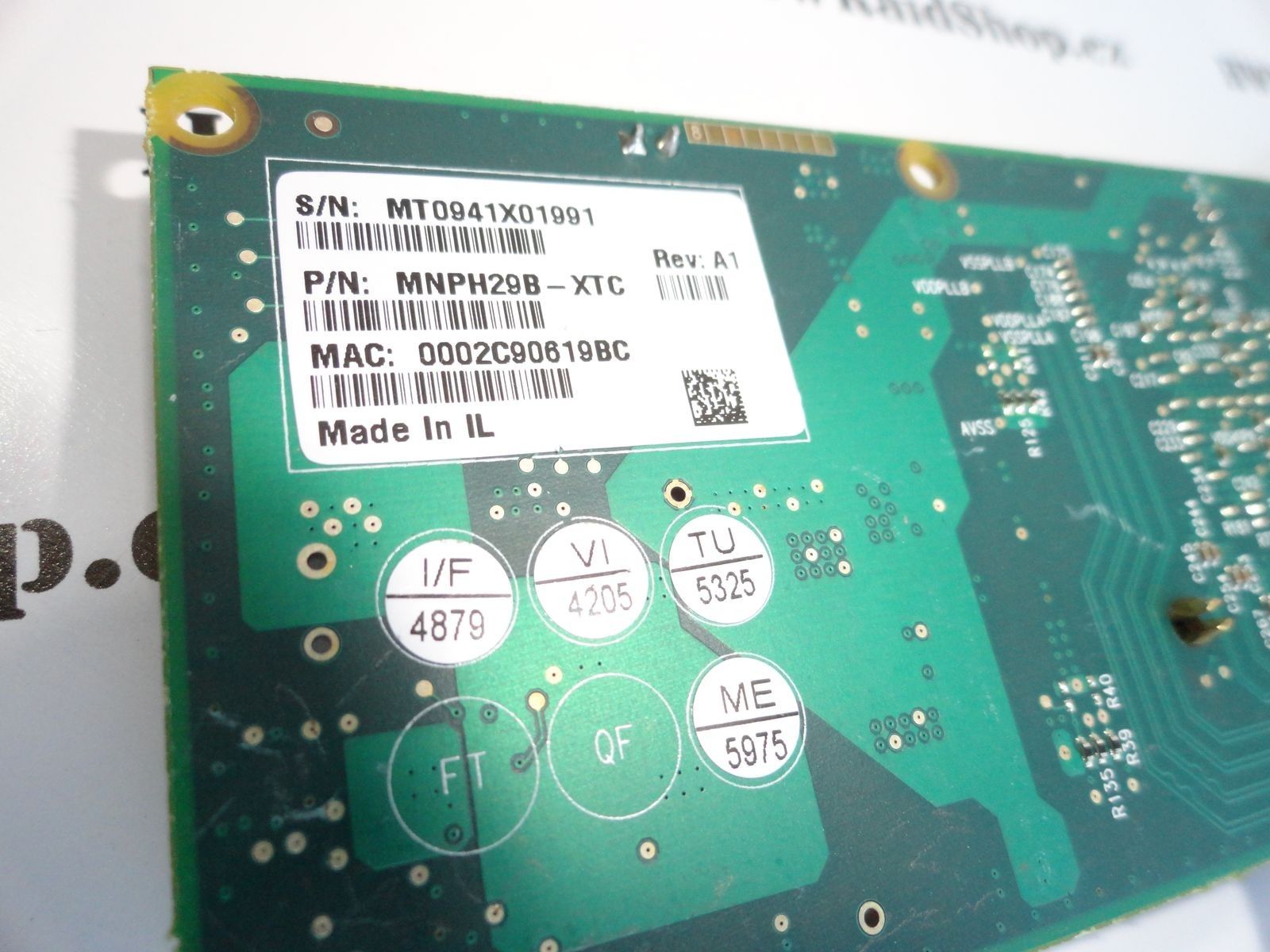

Mellanox ConnectX EN 10Gigabit 2 Port Ethernet Adapter PCI-E MNPH29B-XTC

Úvod

Síťové karty

Mellanox ConnectX EN 10Gigabit 2 Port Ethernet Adapter PCI-E MNPH29B-XTC

Mellanox ConnectX EN 10Gigabit 2 Port Ethernet Adapter PCI-E MNPH29B-XTC

Zboží je bazarové - otestované 100% funkční

Interface (Bus) Type: PCI Express 2.0 x8
Form Factor: plug-in card
Dual 10GbE ports
Advanced Quality of Service
Support for Data Center Ethernet (DCE)

Výrobce:	Mellanox
Kód:	MNPH29B-XTC

Dostupnost:	skladem
Počet ks:	2 ks

1 990,- Kč

Mellanox ConnectX EN 10Gigabit 2 Port Ethernet Adapter PCI-E MNPH29B-XTC

Mellanox ConnectX EN 10Gigabit 2 Port Ethernet Adapter PCI-E MNPH29B-XTC

Related Documents

ConnectX® EN - Single/Dual-Port 10GbE Adapters with PCI Express 2.0 Overview ConnectX EN Ethernet Network Interface Cards (NIC) deliver high-bandwidth and industry-leading 10GbE connectivity with stateless offloads for converged fabrics in High-Performance Computing, Enterprise Data Centers, and Embedded environments. Clustered databases, web infrastructure, and IP video servers are just a few example applications that will achieve significant throughput and latency improvements resulting in faster access, real time response and increased number of users per server. ConnectX EN improves network performance by increasing available bandwidth to the CPU and providing enhanced performance, especially in virtualized server environments.

Key Features:

Dual and Single 10GbE ports
– Dual-port 10GBASE-CX4 NIC
– Single and Dual port SFP+ NIC supporting 10GBASE-SR/LR
PCI Express 2.0 x8 (1.1 compatible)
Support for Data Center Ethernet (DCE)
Hardware Offload of Fiber Channel over Ethernet (FCoE)
Support for Single Root - I/O Virtualization (SRIOV)
Traffic steering across multiple cores
TCP/UDP/IP stateless offload in hardware
Intelligent interrupt coalescence
Hardware-based I/O virtualization
Advanced Quality of Service
Full support for Intel I/OAT

Benefits:

10Gb/s full duplex bandwidth for servers and storage
Industry leading throughput and latency performance
I/O consolidation
Virtualization acceleration
High-performance networking and storage access
Software compatible with standard TCP/UDP/IP and iSCSI stacks

Certifications:

EMC

FCC 47 CFR part 15:2006, subpart B, class A
ICES-003:2004 Issue 4, class A
VCCI V-3/2007.04, class A
EN 55022:1998+A1:2000+A2:2003 class A,
EN 61000-3-2:2000+A2:2005
EN61000-3-3:1995+A2:2005
EN 55024:1998 + A1:2001+A2:2003 standards, harmonized under EMC Directive 2004/108/EC Article 6(2)
AS/NZS 3548

Safety

IEC/EN 60950-1:2001
ETSI EN 300 019-2-2
IEC 60068-2- 64, 29, 32

RoHS

RoHS-R5

Note: All ConnectX adapter cards are certified compliant to FCC Class A. Adapter cards manufactured prior to September, 2010, were marked with the FCC Class B symbol which should be disregarded.
